Fowler, Bowers BLUETOOTH 4 inch - 8 inch /100 - 200mm XTH3 Holematic Pistol Grip Set, 54-567-200-BT

Fowler-Bowers BLUETOOTH XTH3 Holematic Pistol Grip Sets range of bore gages offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliminate operator "feel."


• To reduce hand fatigue, the travel of the trigger is adjustable for minimum over-travel.
• Larger easy-to-read swivel display
• Self centering heads
• Proximity output and USB connectivity.
• Four preset memories
• Fixed anvils
• Resolution: .00005" /.001mm
• Range .080"—12" (2—300mm)
• Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up.
• Heads with special anvils available for threads, splines, slots, etc.
• Sizes over .500" (12.5mm) feature blind bore capability
• Setting rings included in all sets
• Includes UKAS certificates for all pistol grip, heads and rings.
• Special anvils available

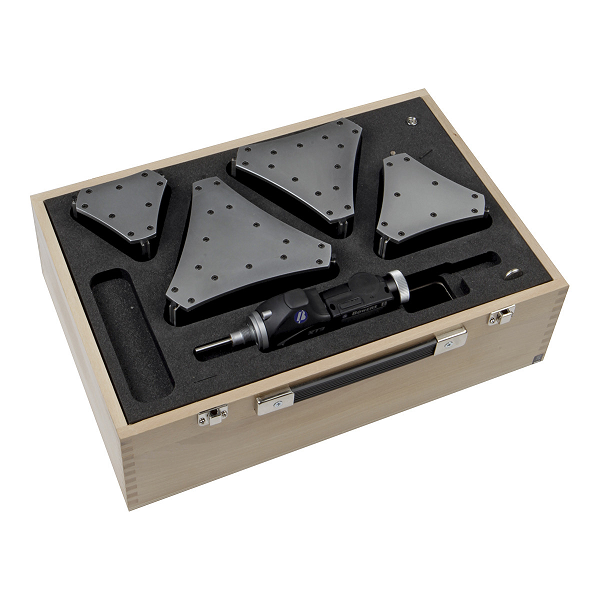

Electronic Holematic Pistol Grip XTH3 Set includes 4 heads, 1 handle, 2 rings
Contact the Fowler Technical Department for special anvil applications
*Image shown for representational purposes only


Set Includes: 4 heads, 1 handle, 2 rings
Range: 4″ - 8″/100 - 200mm
