Fowler, Bowers BLUETOOTH 0.750 inch - 4 inch /20 - 100mm XTH3 Holematic Pistol Grip Set, 54-567-210-BT

Fowler-Bowers BLUETOOTH XTH3 Holematic Pistol Grip Sets range of bore gages offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliminate operator "feel."


• To reduce hand fatigue, the travel of the trigger is adjustable for minimum over-travel.
• Larger easy-to-read swivel display
• Self centering heads
• Proximity output and USB connectivity.
• Four preset memories
• Fixed anvils
• Resolution: .00005" /.001mm
• Range .75"—4" (20-100mm)
• Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up.
• Heads with special anvils available for threads, splines, slots, etc.
• Sizes over .500" (12.5mm) feature blind bore capability
• Setting rings included in all sets
• Includes UKAS certificates for all pistol grip, heads and rings.
• Special anvils available

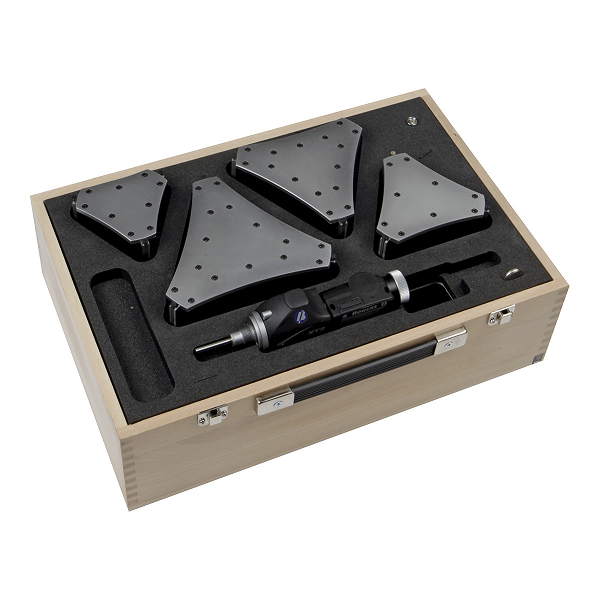

Electronic Holematic Pistol Grip XTH3 Set includes 6 heads, 1 handle, 4 rings
Contact the Fowler Technical Department for special anvil applications
*Image shown for representational purposes only


Set Includes: 6 heads, 1 handle, 4 rings
Range: 0.750″ - 4″/20 - 100mm
