SPI, 8 Piece, 0 inch to 0.03 Measuring Range, 1-1/4 Dial Diam, 0-15-0 Dial Reading, White Dial Test Indicator Kit, 37544061, (BF37544061)
8 Piece, 0" to 0.03" Measuring Range, 1-1/4" Dial Diam, 0-15-0 Dial Reading, White Dial Test Indicator Kit
0.0005" Accuracy, 0.64" Contact Point Length, 0.079" Ball Diam, 0.0005" Dial Graduation
Specs
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.0300 |
| Dial Graduation (Decimal Inch) | 0.000500 |
| Dial Reading | 0-15-0 |
| Dial Color | White |
| Kit Type | Dial Test Indicator |
| Contact Point Length (Decimal Inch) | 0.6400 |
| Diameter (Decimal Inch) | 0.0790 |
| Accuracy (Decimal Inch) | 0.000500 |
| Dial Diameter (Decimal Inch) | 1.2500 |
| Dial Diameter (Inch) | 1-1/4 |
| Number of Pieces | 8 |
Features
- Easy-to-read dial
- Universal positioning capability
- Jeweled bearing
- Supplied with 3/ 8" dovetail stems
- Short form Calibration Certificate included
- Furnished in fitted case
- Two Year Limited Warranty

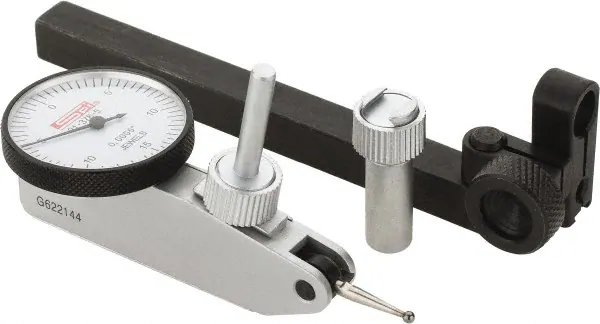

What's In The Box
- Indicator
- (2) Contact points
- Universal clamp
- Height gage bar
- 3/ 8" and 5/ 32" dovetail extensions for inch sets, 8mm and 4mm dovetail extensions for metric sets
- Fitted case
