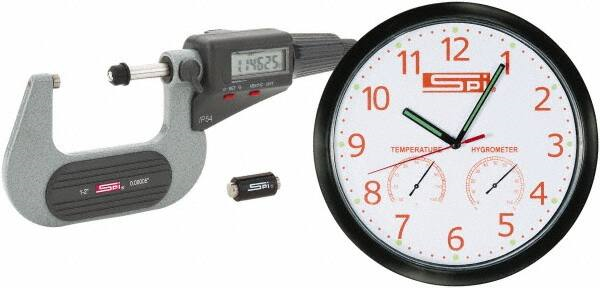

SPI, 25 to 50mm IP54 Carbide-Tipped Standard Electronic Outside Micrometer, 38771051, (BF38771051)
SPI25 to 50mm IP54 Carbide-Tipped Standard Electronic Outside Micrometer
0.000050" Resolution, 0.00016" Accuracy, NIST Traceability Certification
Features and Benefits
Friction thimbles offer a smooth measuring operation and resist shock. They do not offer audible feedback, but are designed to be closer to the operator's hand.
Specs
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 1.0000 |
| Minimum Measurement (mm) | 25.00 |
| Maximum Measurement (mm) | 50.00 |
| Maximum Measurement (Decimal Inch) | 2.0000 |
| Thimble Type | Friction |
| Traceability Certification Included | NIST |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Throat Depth (Decimal Inch) | 1.2600 |
| Accuracy Plus/Minus (mm) | 0.0040 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000160 |
| Water Resistance Rating | IP54 |
| Rotating Spindle | Yes |
| Data Output | No |
| Data Output | No |
| Measuring Face Material | Carbide-Tipped |
| Battery Type | LR44 |
| Includes | Battery; 9 Fluorescent SPI Clock |
