SPI, 15 Anvil, 1.4 to 6 inch Dial Bore Gage Set, 54325816, ( BF54325816 )
SPI15 Anvil, 1.4 to 6" Dial Bore Gage Set
0.0005" Graduation, 6" Gage Depth, Accurate to 0.0005", Carbide Contact Point
Specs
| Type | Dial Bore Gage Set |
| Minimum Measurement (Decimal Inch) | 1.4000 |
| Maximum Measurement (Decimal Inch) | 6.0000 |
| Maximum Measurement (Inch) | 6 |
| Gage Depth (Inch) | 6 |
| Gage Depth (Decimal Inch) | 6.0000 |
| Graduation (Decimal Inch) | 0.0005 |
| Plunger Travel (Decimal Inch) | 0.2500 |
| Accuracy (Decimal Inch) | 0.000500 |
| Overall Length (Inch) | 13-1/2 |
| Material | Carbide (Contact Point) |
| Dial Face Color | White |
| Number of Anvils/Rods | 15 |
| Includes Indicator | Yes |
| Includes | Storage Case |
Features
- Travel indicator Range: 0 - 0.25"
- Reading: 0-25-0
- Furnished in fitted case
- Two Year Limited Warranty

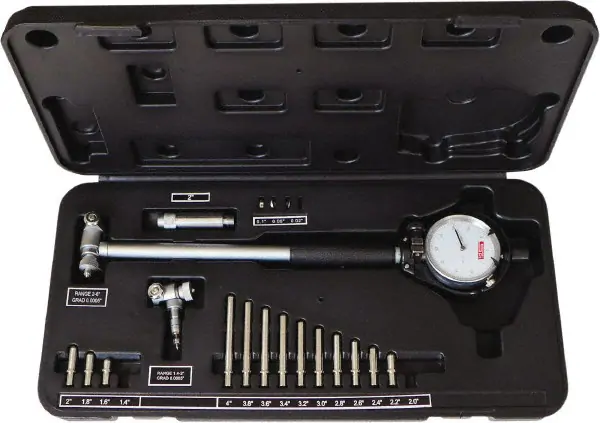

What's In The Box
- (2) Interchangeable measuring heads: 1.4 - 2" and 2 - 6"
- (2) Sets of anvils with carbide contact points: 1.4, 1.6, 1.8, 2" and 2, 2.2, 2.4, 2.6, 2.8, 3, 3.2, 3.4, 3.6, 3.8, 4"
- (3) spacers/washers: 0.02, 0.05, 0.1"
- 2" extender
