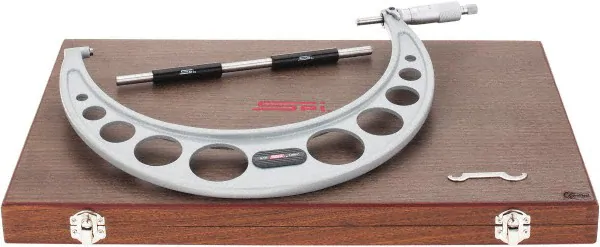

SPI, 11 to 12 inch Range, 0.0001 Graduation, Mechanical Outside Micrometer, 42417147, (BF42417147)
11 to 12" Range, 0.0001" Graduation, Mechanical Outside Micrometer
Ratchet Stop Thimble, 6.62" Throat Depth, Accurate to 0.0003", NIST Traceability Certification
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They cause micro-shocks and requires two hands to make a measurement.
Specs
| Minimum Measurement (Inch) | 11 |
| Maximum Measurement (Inch) | 12 |
| Graduation (Decimal Inch) | 0.000100 |
| Features | None |
| Thimble Type | Ratchet Stop |
| Measuring Face Material | Carbide |
| Accuracy (Decimal Inch) | 0.000300 |
| Traceability Certification Included | NIST |
| Throat Depth (Decimal Inch) | 6.6200 |
| Rotating Spindle | Yes |
| Finish/Coating | Enamel |
Features
• Carbide tipped measuring face
• Painted steel frame
• Standards included above 0-1" range/0-25mm
• Ratchet stop
• Spindle lock
• Short form calibration certificate included
• Furnished in fitted case
• Two Year Limited Warranty
• Painted steel frame
• Standards included above 0-1" range/0-25mm
• Ratchet stop
• Spindle lock
• Short form calibration certificate included
• Furnished in fitted case
• Two Year Limited Warranty
