SPI, 1.4 to 6 inch, 6 inch Deep, Electronic Bore Gage, 54325915, ( BF54325915 )
SPI1.4 to 6", 6" Deep, Electronic Bore Gage
Up to 0.0005" Accuracy, 0.00005" Resolution, Data Output, Includes Indicator
Features and Benefits
Electronic bore gages are comparative instruments used for measuring the roundness of holes, tapers and internal diameters. They are engineered with a LCD screen, extension shaft and generally will have either a 2- or 3-contact interchangeable anvil system.
Specs
| Type | Electronic Bore Gage |
| Minimum Measurement (Decimal Inch) | 1.4000 |
| Maximum Measurement (Decimal Inch) | 6.0000 |
| Gage Depth (Decimal Inch) | 6.0000 |
| With Accessories | Yes |
| Accuracy (Decimal Inch) | 0.0005 |
| Resolution (Decimal Inch) | 0.000050 |
| Data Output | Yes |
| Includes Indicator | Yes |
| Material | Carbide (Anvil) |
| Battery Type | CR2032 |
| Water Resistance Rating | IP54 |
| Number of Pieces | 15 |
| Includes | Case |
Features
- Absolute encoder eliminates zero setting on power-up
- SPC/USB data output - Use Order #54325642 for cable and Order #35650282 for wireless data output
- Travel indicator Range: 0 - 0.50"/0-12.7mm
- Furnished in fitted case
- Two Year Limited Warranty

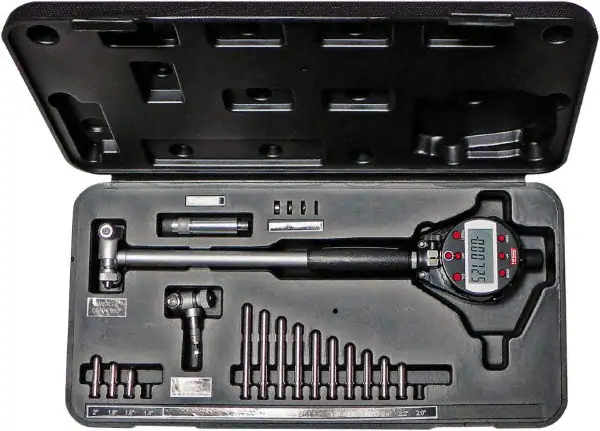

What's In The Box
- (2) Interchangeable measuring heads: 1.4 - 2" and 2 - 6"
- (2) Sets of anvils with carbide contact points: 1.4, 1.6, 1.8, 2" and 2, 2.2, 2.4, 2.6, 2.8, 3, 3.2, 3.4, 3.6, 3.8, 4"
- (3) spacers/washers: 0.02, 0.05, 0.1"
- 2" extender
