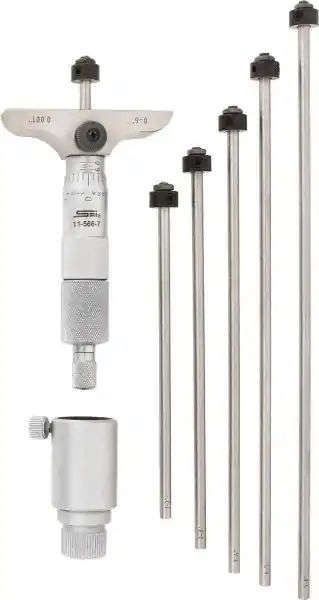

SPI, 0 to 6 inch Range, 6 Rod, Mechanical Depth Micrometer, 42416362, (BF42416362)
0 to 6" Range, 6 Rod, Mechanical Depth Micrometer
Ratchet Stop Thimble, 2-1/2" Base Length, 0.001" Graduation, 4.5mm Rod Diam, NIST Traceability Certification
Features and Benefits
Rotating rods are designed where the spindle rods rotate with the thimble.
Ratchet stop thimbles offer audible feedback and constant measuring force on the spindle while measuring. They may cause micro-shocks and require two hands to make a measurement.
Specs
| Minimum Measurement (Inch) | 0 |
| Maximum Measurement (Inch) | 6 |
| Base Length (Inch) | 2-1/2 |
| Base Length (Decimal Inch) | 2.5000 |
| Features | None |
| Rod Type | Rotating |
| Number of Rods | 6 |
| Thimble Type | Ratchet Stop |
| Graduation (Decimal Inch) | 0.00100 |
| Rod Diameter (mm) | 4.50 |
| Rod Diameter (Decimal Inch) | 0.1760 |
| Accuracy (Decimal Inch) | 0.000200 |
| Traceability Certification Included | NIST |
