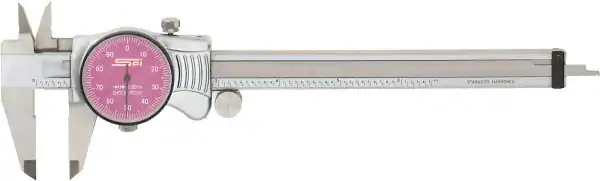

SPI, 0 to 6 inch Range, 0.001 Graduation, 0.1 per Revolution, Dial Caliper, 37530573, (BF37530573)
PI0" to 6" Range, 0.001" Graduation, 0.1" per Revolution, Dial Caliper
Purple Face, 1.57" Jaw Length, Accurate to 0.0010", NIST Traceability Certificate
Specs
| Maximum Measurement (Inch) | 6 |
| Dial Graduation (Decimal Inch) | 0.001 |
| Accuracy (Decimal Inch) | 0.0010 |
| Jaw Length (Decimal Inch) | 1.5700 |
| Range Per Revolution (Decimal Inch) | 0.100 |
| Dial Face Color | Purple |
| Material | Stainless Steel |
| Minimum Measurement (Inch) | 0.00 |
| Traceability Certification Included | NIST |
| Includes Depth Measurement Rod | Yes |
| Includes Inside Diameter Jaws | Yes |
| Jaw Style | Inside/Outside |
| Jaw Material | Stainless Steel |
Features
- Dual pinion mechanism offers extra smooth operation
- Sturdy aluminum ergonomic die cast housing can be used in the harshest of manufacturing environments, including situations with hot steel chips
- 4-Way measurements: inside, outside, depth and step
- Shockproof design
- Short form Calibration Certificate included
- Furnished in fitted case
- Two Year Limited Warranty
