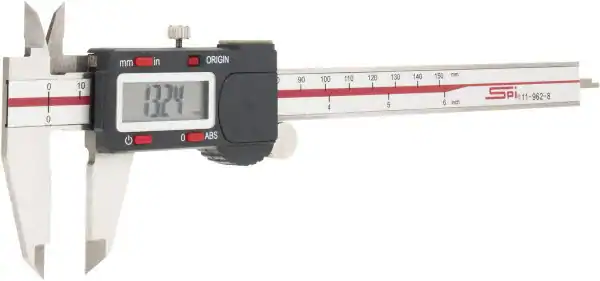

SPI, 0 to 6 inch Range 0.0005 Resolution, IP54 Electronic Caliper, 54325667, (BF54325667)
0 to 6" Range 0.0005" Resolution, IP54 Electronic Caliper
Stainless Steel with 1.56" Stainless Steel Jaws, 0.001" Accuracy, USB Output
Features and Benefits
IP54 ratings offer limited protection against dirt and dust. It also offer protection water spray from any direction.
Specs
| Minimum Measurement (Decimal Inch) | 0 |
| Maximum Measurement (Decimal Inch) | 6 |
| Accuracy Plus/Minus (Decimal Inch) | 0.0010 |
| Resolution (Decimal Inch) | 0.0005 |
| IP Rating | IP54 |
| Data Output | USB |
| Jaw Length (Decimal Inch) | 1.5600 |
| Includes Inside Diameter Jaws | Yes |
| Offset Jaw | No |
| Jaw Style | Inside/Outside |
| Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Finish/Coating | Hardened Stainless Steel |
| Power Source | Battery |
| Battery Type | CR2032 |
| Minimum Inside Diameter Measurement (Decimal Inch) | 0.0000 |
| Maximum Inside Diameter Measurement (Inch) | 6 |
| Includes Depth Measurement Rod | Yes |
| Includes | Case |
Features
- Absolute encoder eliminates zero setting on power-up
- SPC/USB data output – Use Order # #54325642 for cable and Order #35650282 for wireless data output
- Hardened stainless steel construction
- Thumb wheel and locking screw
- Furnished in fitted case
- D.O.T. regulated, shipped via ground freight only.
