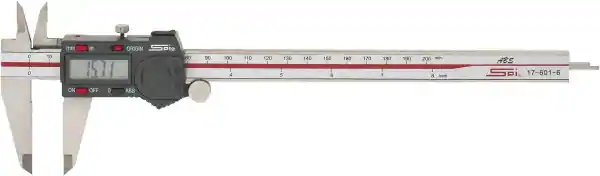

SPI, 0 to 200mm Range, 0.01mm Resolution, Electronic Caliper, 69548329, (BF69548329)

This caliper does not have an IP rating or offer any special protection against dust or water.

Minimum Measurement (mm)	0
Minimum Measurement (Decimal Inch)	0
Maximum Measurement (Decimal Inch)	8
Maximum Measurement (mm)	200
Accuracy Plus/Minus (Decimal Inch)	0.0015
Resolution (Decimal Inch)	0.0005
Resolution (mm)	0.0100
IP Rating	None
Data Output	Micro USB
Jaw Length (Decimal Inch)	1.9700
Jaw Length (mm)	50.00
Includes Inside Diameter Jaws	Yes
Offset Jaw	No
Jaw Style	Inside/Outside
Application	Length; Depth
Material	Stainless Steel
Jaw Material	Stainless Steel
Finish/Coating	Stainless Steel
Power Source	Battery
Battery Type	CR2032
Minimum Inside Diameter Measurement (Inch)	0
Minimum Inside Diameter Measurement (mm)	0.00
Minimum Inside Diameter Measurement (Decimal Inch)	0.0000
Maximum Inside Diameter Measurement (Inch)	8
Maximum Inside Diameter Measurement (mm)	200.00
Traceability Certification Included	NIST
Includes Depth Measurement Rod	Yes

Features

Absolute encoder eliminates zero setting on power up
SPC/USB Data output - use MSC Order #69602217 for cable
Fine adjustment to allow precise movement of the slider
Internal measurement jaws are rounded to provide accurate measurement of internal diameters
Minimum internal diameter measurement capability of 20mm
Absolute and incremental measuring modes
Jaw thickness: 0.138"
Hardened stainless steel construction
Inch/Metric conversion
Thumb wheel
Short form Calibration Certificate included
Furnished in fitted case
Two Year Limited Warranty
D.O.T. Regulated, shipped via ground freight only
