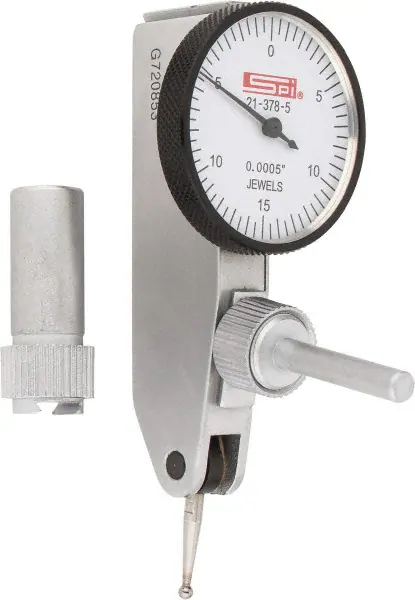

SPI, 0.03 inch Range, 0.0005 Dial Graduation, Horizontal Dial Test Indicator, 37543733, (BF37543733)
0.03" Range, 0.0005" Dial Graduation, Horizontal Dial Test Indicator
1-1/4" White Dial, 0-15-0 Dial Reading, Accurate to 0.0005"
Specs
| Maximum Measurement (Decimal Inch) | 0.0300 |
| Dial Graduation (Decimal Inch) | 0.000500 |
| Dial Reading | 0-15-0 |
| Dial Diameter (Inch) | 1-1/4 |
| Style | Horizontal |
| Dial Color | White |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Attachments | No |
| Traceability Certification Included | NIST |
| Contact Point Length (Decimal Inch) | 0.6400 |
| Ball Diameter (Decimal Inch) | 0.0790 |
| Accuracy (Decimal Inch) | 0.000500 |
Features
- Easy-to-read dial
- Universal positioning capability
- Jeweled bearing
- Supplied with 3/ 8" dovetail stems
- Short form Calibration Certificate included
- Furnished in fitted case
- Two Year Limited Warranty
