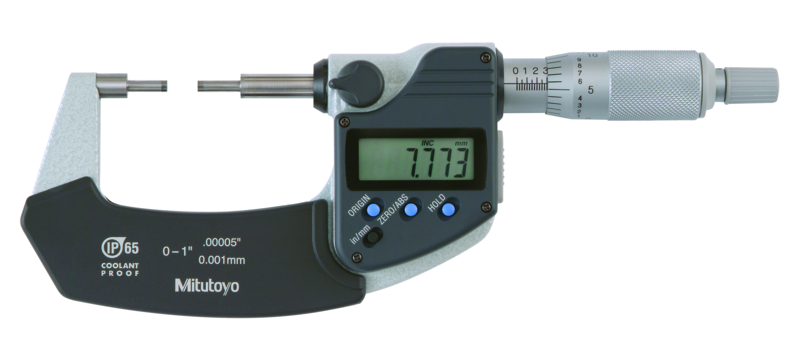

Mitutoyo, Digital Spline Micrometer IP65 0-1inch, Digimatic, 3mm Measuring Face, 331-351-30

SKU

331-351-30

Special Price $425.92 $484.00 - You Save: $58 (12.00%)

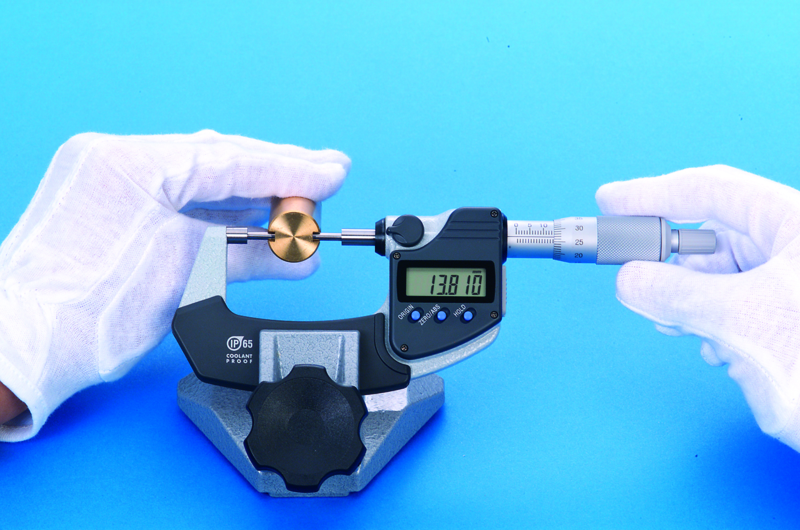

This digimatic spline micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

Outstanding accuracy and oil-resistant material used for all plastic parts (IP65)
Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

Range:	0 - 1 "
Accuracy:	±0,0001"
Flatness:	0,000012"
Parallelism:	[0,00008 + 0,00004 (L/4)]" L = max, range
Anvil/ Tip:	A
Mass:	330 g
Digital step:	0,001 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring surfaces:	Carbide tipped, micro-lap finish, stepped
Measuring spindle:	ø6.35 mm, Spindle pitch 0.5 mm, with spindle lock
Measuring force:	5 - 10 N
Battery life:	approx 2,4 years
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery
ORIGIN:	Yes
ZERO/ABS:	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	No
Data output:	Yes
HOLD:	Yes
Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
