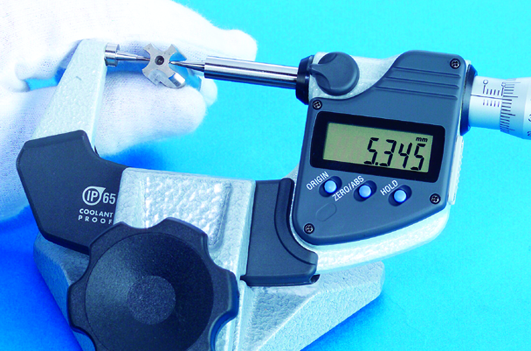

Mitutoyo, Digital Point Micrometer Inch/Metric, 2-3 inch, 30° Tip, 342-363-30

SKU

342-363-30

Special Price $486.64 $553.00 You Save: $66 (12.00%)

DescriptionThis Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:

Its pointed anvil and spindle has a choice of included angle,
ending in small-radius contact points.
You can use it to measure grooves, steps and similar.

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Range:	2 - 3 "
Accuracy:	±0,0001"
Point:	30°
Mass:	625 g
Digital step:	0,001 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring surfaces:	Carbide tipped and conical spindle and anvil, measuring point radius 0.3 mm
Measuring spindle:	ø6.35 mm, spindle pitch 0.5 mm, with spindle lock
Measuring force:	5 - 10 N
Battery life:	approx. 2,4 years
ORIGIN:	Yes
ZERO/ABS:	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
Data output:	Yes
Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
