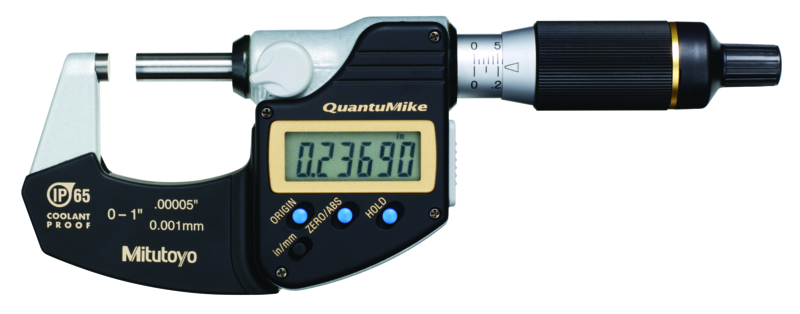

Mitutoyo, Digital Micrometer QuantuMike IP65 Inch/Metric, 0-1 inch, 293-180-30

SKU
293-180-30
Special Price $231.66 $270.00 - You Save: $38 (14.20%)
This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:
  • Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
  • Extraordinary battery life of 2,4 years
  • Outstanding accuracy

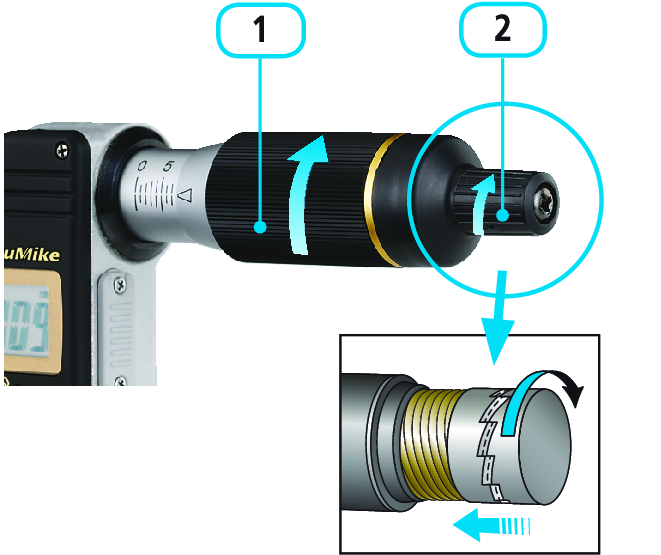

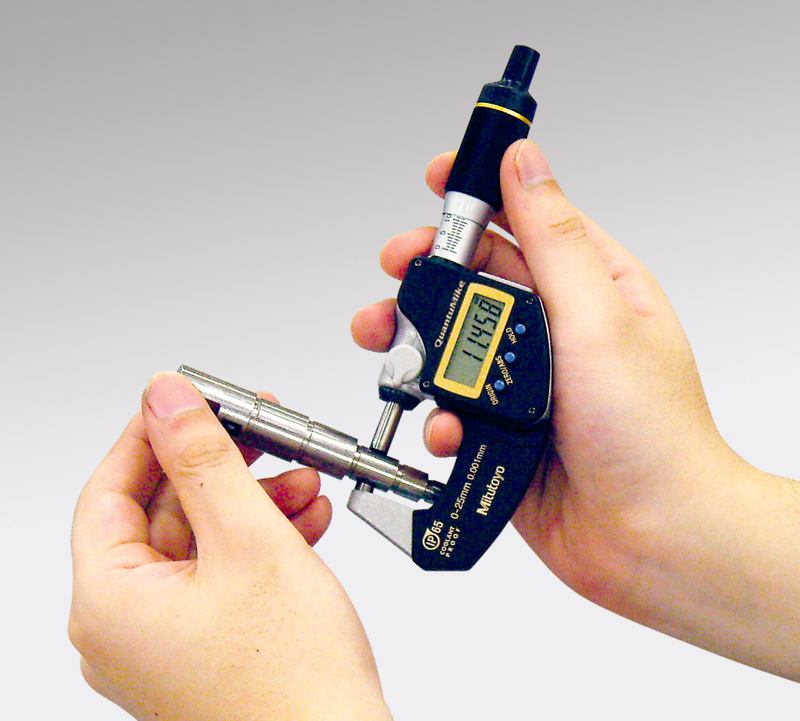

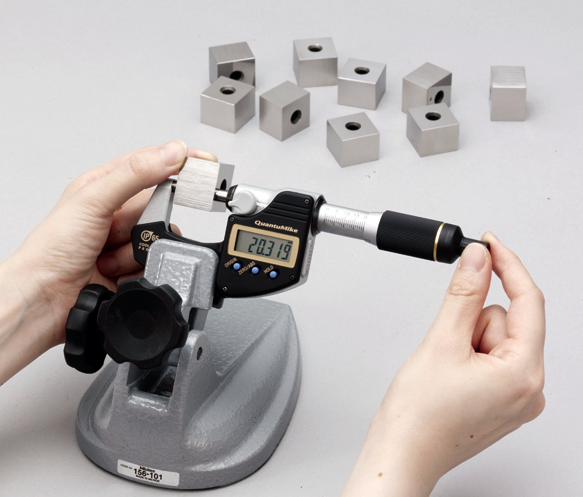

  • Ratched thimble mechanism ensures easy single-handed or stand operation.

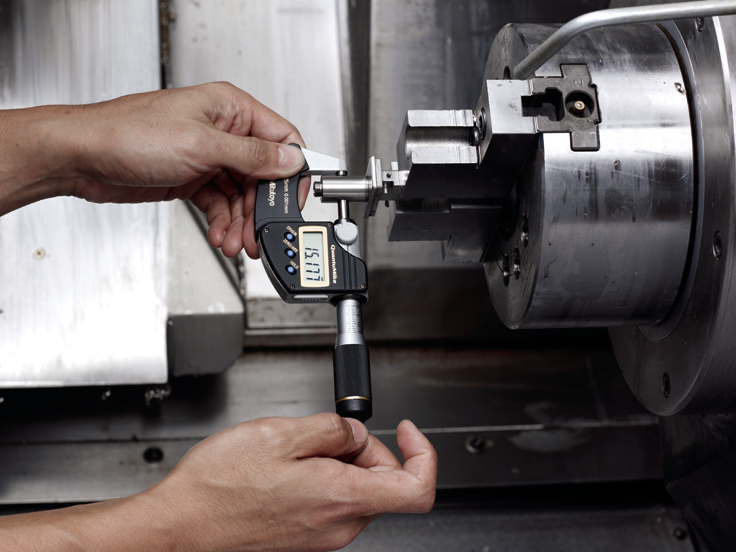

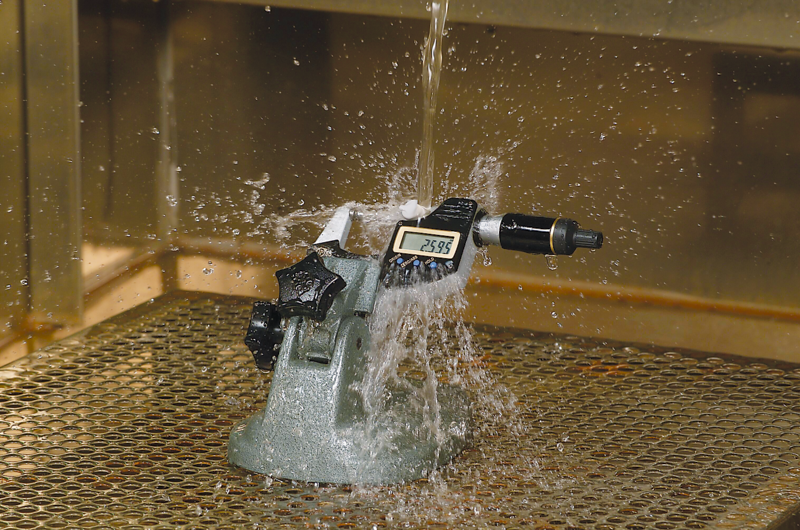

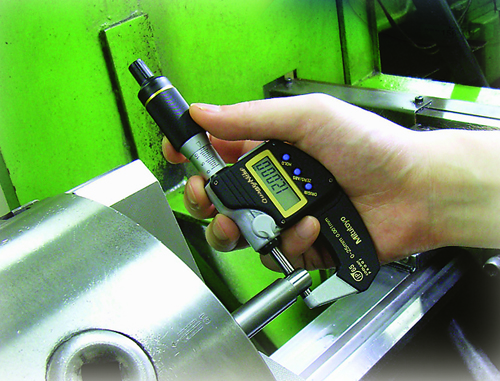

  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Range:
0 - 1 "
Accuracy:
±1µm/ 0,00005"
Flatness:
0,000012"
Parallelism:
0,00004"
Data output:
Yes
Mass:
265 g
Digital step:
0,00005" / 0,001 mm
Measuring surfaces:
carbide-tipped, micro-lap finish
Measuring force:
7 - 12 N
Battery life:
approx. 2,4 years
ORIGIN (until 100 mm):
Yes
ZERO/ABS:
Yes
Auto Power OFF
after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Parallelism:
1 µm for models up to 50 mm 2 µm for models up to 100 mm
Inch-Metric:
Inch/Metric

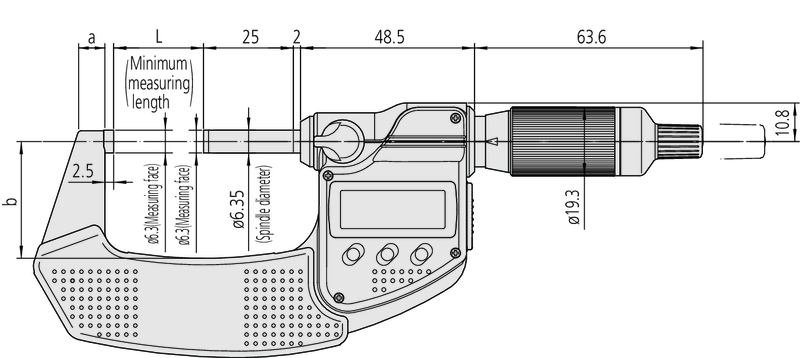

293-141-30_d1.eps
L:
0 mm
a:
6,5 mm
b:
25 mm
