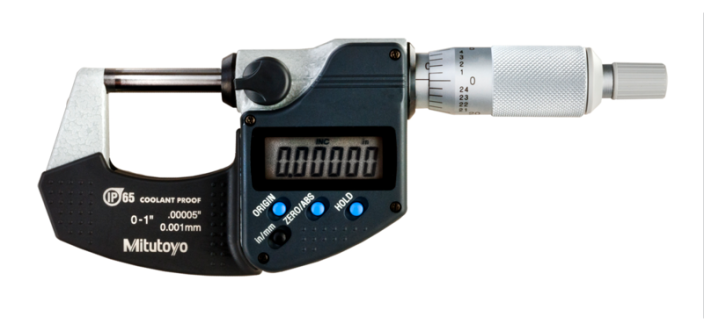

Mitutoyo, Digital Micrometer IP65, Inch/Metric 0-1 inch, w/o Output, 293-340-30

SKU

293-340-30

Special Price $142.24 $193.00 - You Save: $50 (26.30%)

This IP65 micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of 2,4 years
Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.

Range:	0 - 1 "
Accuracy:	±0,00005"
Parallelism:	0,00004"
Data output:	No
Mass:	270 g
Digital step:	0,00005"/0,001 mm (up to 4") /0,0001"/0,001 mm(over 4")
Flatness:	0,000012"
Parallelism:	1 µm for models up to 2" 2 µm for models up to 4" 3 µm for models up to 7" 4 µm for models up to 11" 5 µm for models over 12"
Measuring surfaces:	Carbide tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø 6,35 mm, spindle pitch 0,635 mm
Measuring force:	5 - 10 N
Battery life:	approx. 2,4 years for models up to 4" 1,2 years for >4"
ORIGIN (until 100 mm):	Yes
ZERO/ABS:	Yes
2 x PRESET (over 100 mm):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock (over 100 mm):	Yes
HOLD:	Yes
Scale:	Thimble and sleeve satin chrome finish, ø18 mm

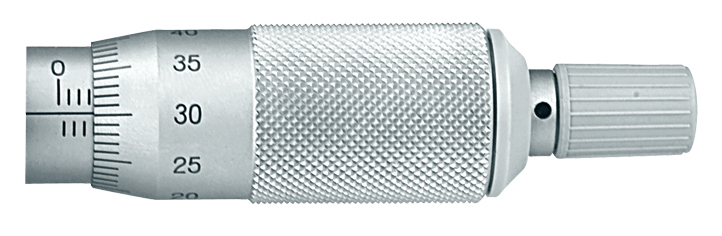

Functions:	With ratched stop
Delivered:	Including box, key, 1 battery, setting standard (from 1" upward)certificate of inspection (0-2")
Inch-Metric:	Inch/Metric
