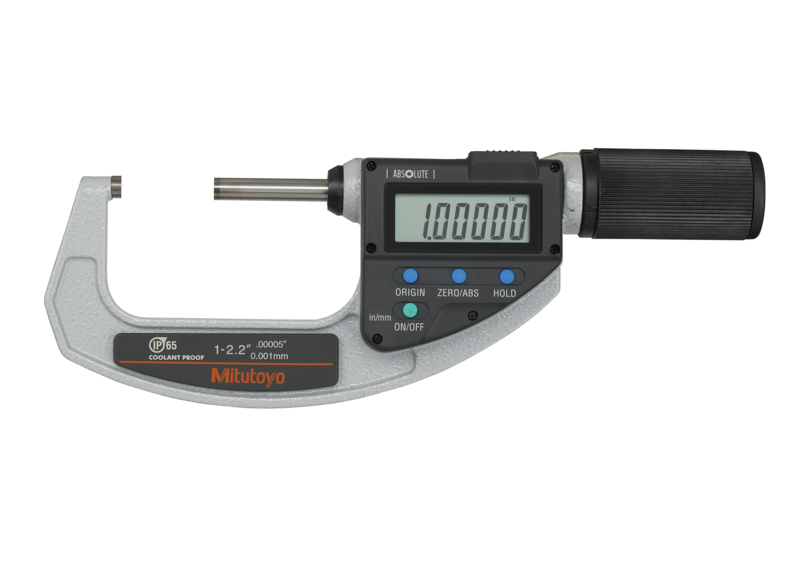

Mitutoyo, Digital Absolute Micrometer QuickMike 1-2,2 inch, Digimatic, 293-677-20

SKU

293-677-20

Special Price $580.87 $667.00 - You Save: $86 (12.91%)

This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models and offers the following benefits:

With 10 mm feed per revolution, it delivers twenty times as fast as standard devices.
Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
ABSOLUTE linear scale means no restriction on adjustment speed.
Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Range:	37288 - 37288 "
Accuracy:	±2 µm/0.0001"
Accuracy:	± .1 µm
Flatness:	0,000012"
Parallelism:	0,00008"
Mass:	355 g
Digital step:	0,001 mm / 0,001 mm/0,00005"
Measuring surfaces:	Carbide tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, 10 mm pitch
Measuring force:	5 - 12 N
Battery life:	approx. 5 years under normal use
ORIGIN:	Yes
ZERO/ABS:	Yes
ON/OFF:	Yes
Low voltage alarm:	Yes
Data output:	Yes
HOLD:	Yes
Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
