Inspection Arsenal, Spider Clamp – 3 Legged – 6 inch, SC-06-03

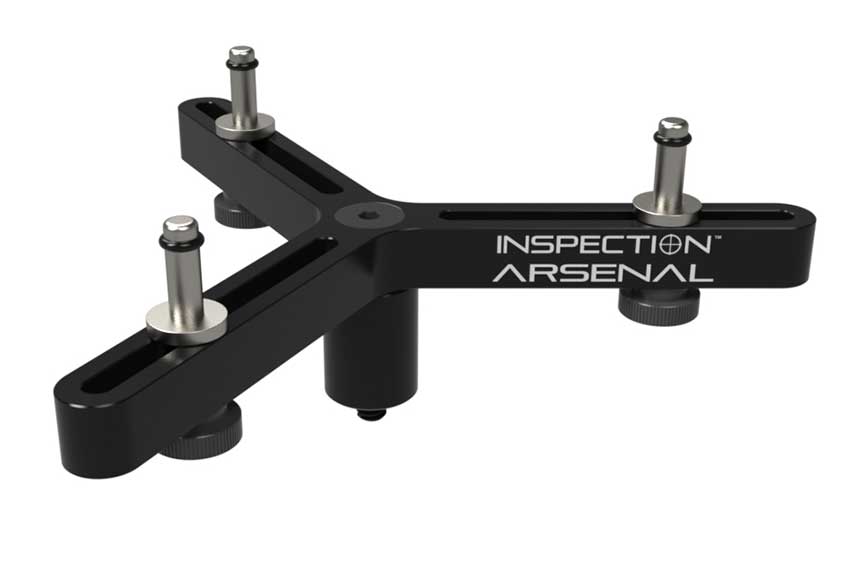

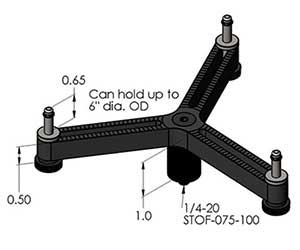

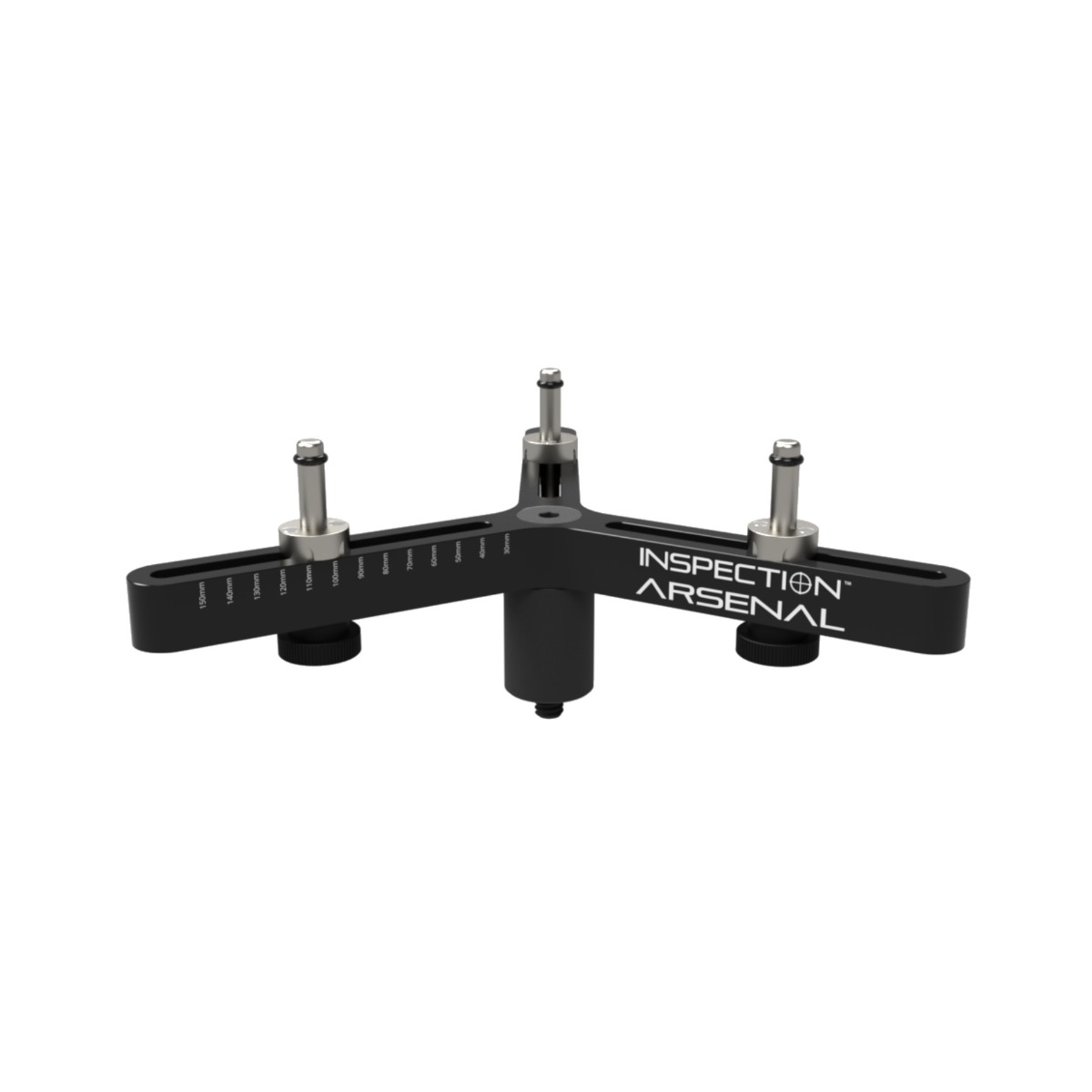

Unique vise specifically designed to hold delicate round parts without distortion and allow maximum back lighting for vision inspection (also works well for CMM inspection). Designed to replace bulky traditional 3-jaw chuck which limits access and can distort parts. The Spider Vise™ is designed to hold parts from 1.18” to 6” in diameter. Each leg has adjustable pins with o-rings to provide grip when part is in place. Spider-Clamp™ is black anodized aluminum sitting on a ¾” x 2” steel stand-off secured by a flat-head screw. Add taller stand-offs to gain more height when necessary. ¼-20 and M6 mounting thread.
