Inspection Arsenal, Riser-Grip™, RG-2.75

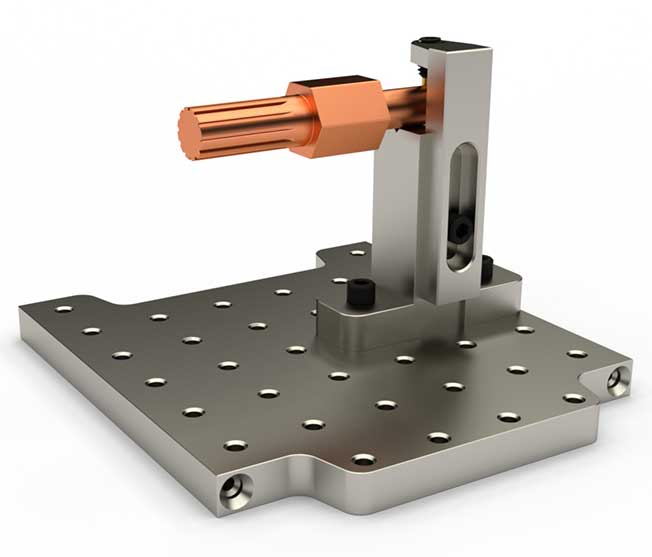

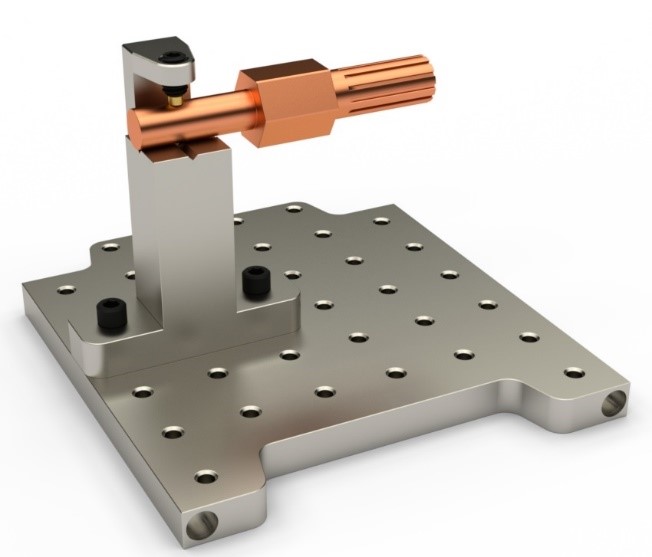

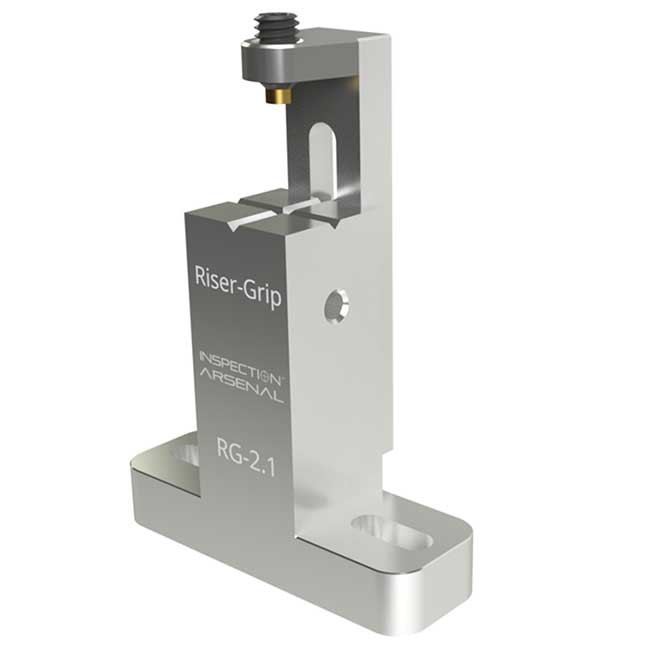

The redesigned Riser-Grip™ full-access clamps are now even more versatile. The two-piece design allows the top jaw containing a brass tipped set screw to adjust up and down and lock into place. V-grooves are added to the holding surface bidirectionally to secure small round parts for inspection. Threaded holes in the base accommodate stops. Riser-Grip™ is machinable and can be customized for your unique parts. Use for CMM and vision inspection.

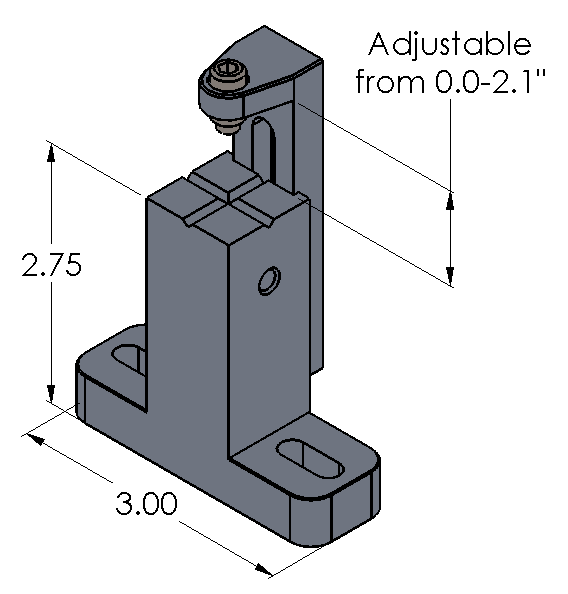

The adjustable opening is able to secure parts of .0 to 2.1” (0mm to 53.3mm) in thickness. Clear anodized aluminum. Fits ¼-20, 1/2” and 1” fixture plate hole patterns. Inquire about Riser-Grip™ for metric hole patterns.
