Inspection Arsenal, Rapid-Loc™ 2.5 inch Pneumatic Air Vise System, RL-VISE-SYS02

Designed to take advantage of the air at your CMM, the soft jaws of the Rapid-Loc™ vise can be customized to hold most any part. Regulated air pressure can produce just enough clamping force to hold delicate parts or as much as 150-lbs if needed.

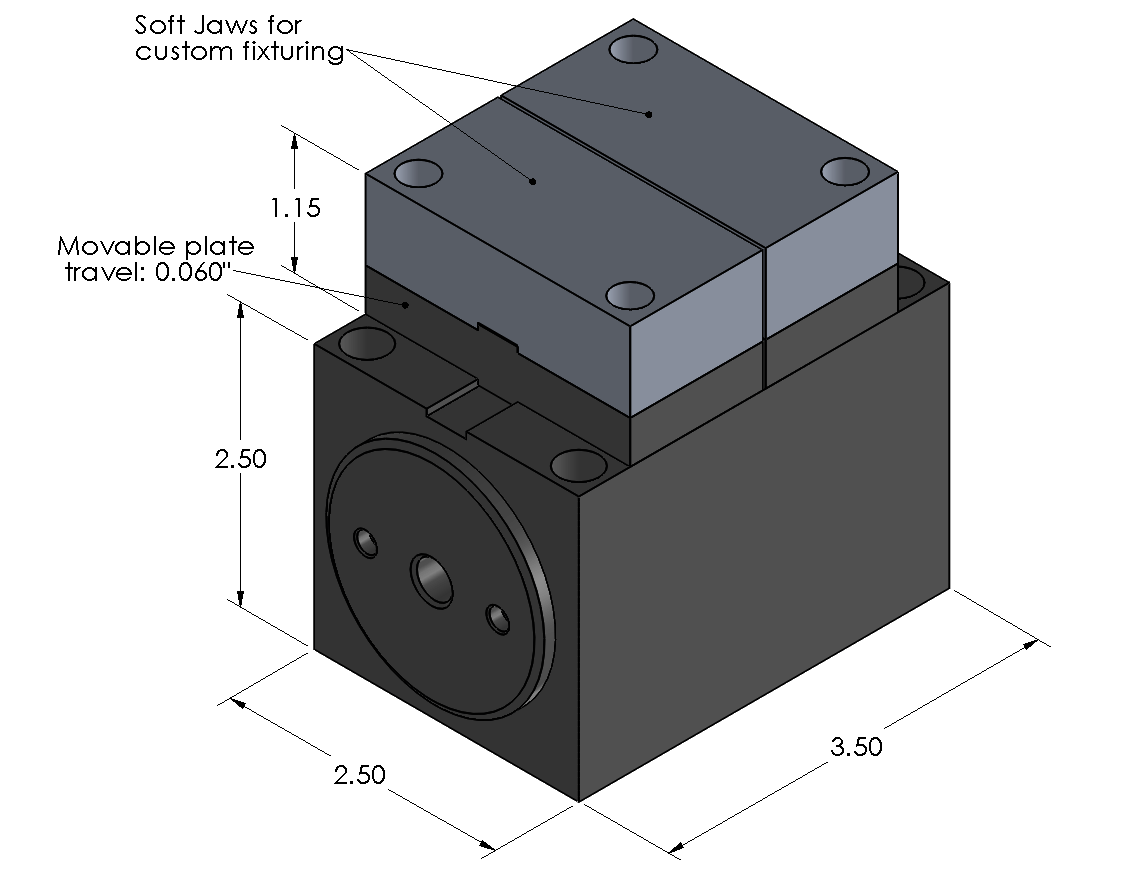

Mount Rapid-Loc™ vises on Inspection Arsenal™ Loc-N-Load™ quick-swap fixture plates for fast, accurate, and highly repeatable setups that help break inspection bottlenecks.  Rapid-Loc™ can also be mounted on existing CMM breadboards. The black anodized, aluminum Rapid-Loc™ pneumatic vise is currently available with a 2.5”x 3.5” footprint, .06” travel, 150-lbs of force. Secure Rapid-Loc™ with standard or metric thread screws.

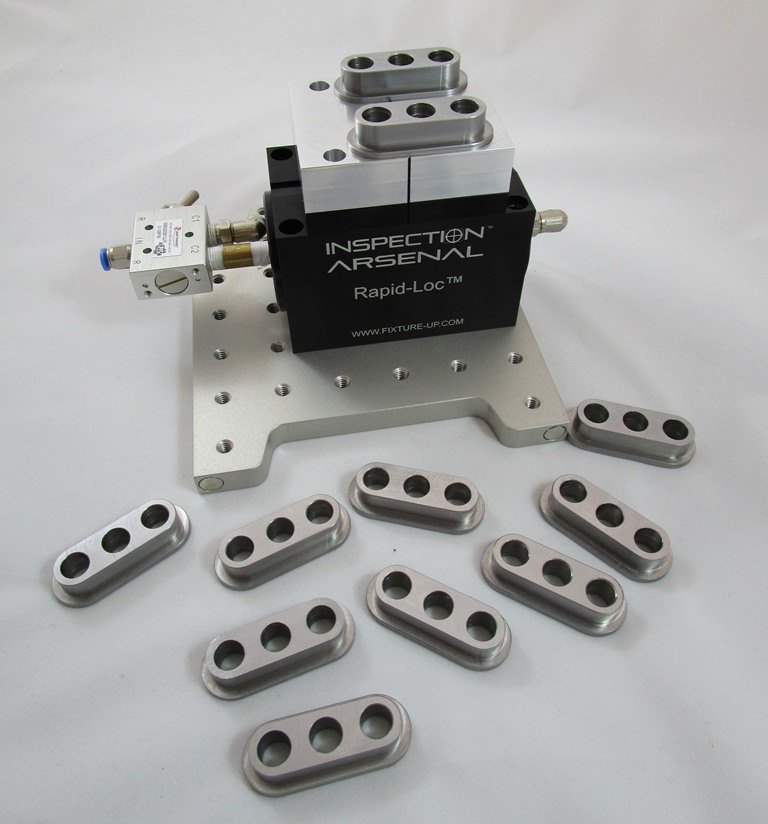

Order the Rapid-Loc™ vise body and add your own fittings and soft jaws or order the vise fully assembled with fittings, valves, and tubing – even mounted on a Loc-N-Load™ plate sized per your job. Add multiple Rapid-Loc™ pneumatic vises per fixture plate with soft jaws machined to hold one part or multiple parts per vise.

RL-VISE-SYS02, Rapid-Loc™ 2.5" Air Vise SYSTEM for CMM Inspections.

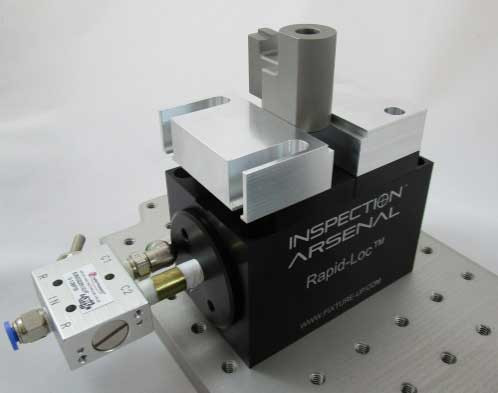

Rapid-Loc™ 2.5" System comes fully assembled: Rapid-Loc™ Air Vise with machinable soft jaws, valve and fittings included. Regulator sold separately.

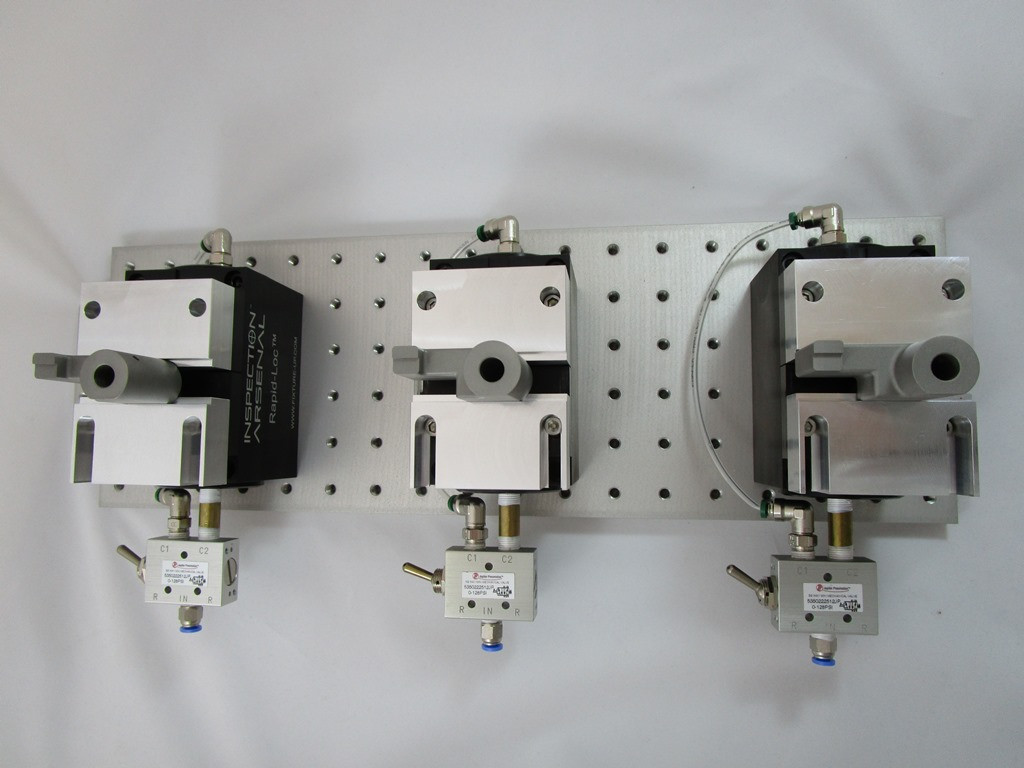

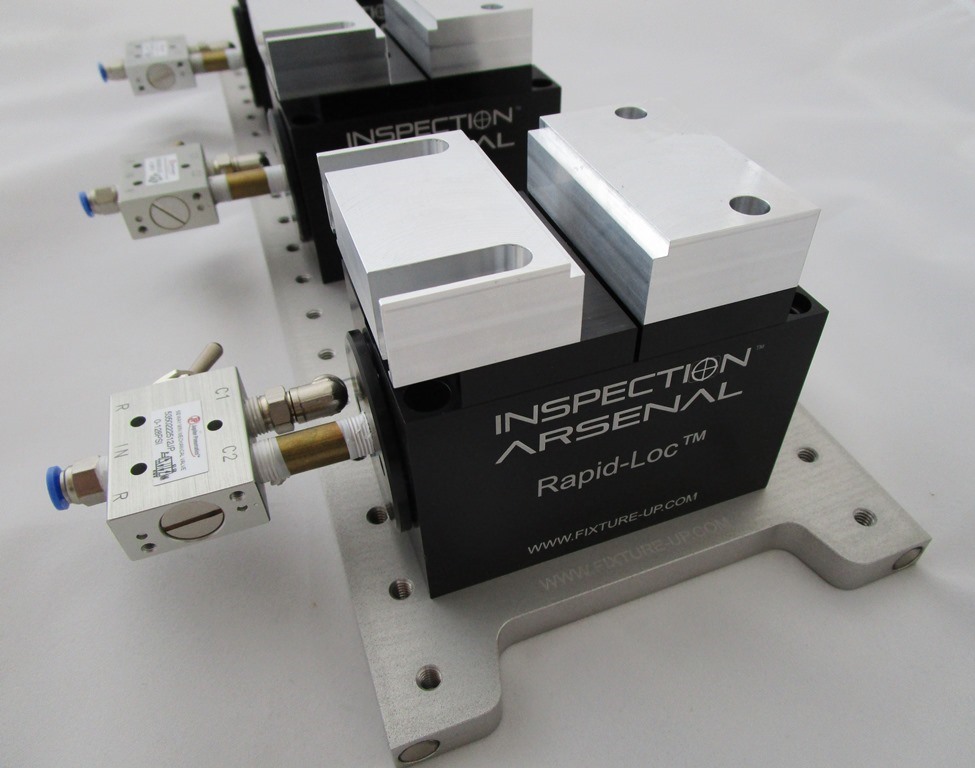

MULTI-VISE setups: Mount on Loc-N-Load™ fixture plate sized per your job.  Combine multiple assembled vises and tubing, a regulator and accessories as needed for a multi-part fixture.  Soft jaws can be machined to hold one or multiple parts per vise.

CUSTOM: send Phillips Precision your electronic part files, and we will create a custom, turn-key Rapid-Loc™ pneumatic fixture ready for your work.

Loc-N-Load™ docking rails and fixture plates sold separately.
