Inspection Arsenal, Portable CMM (Gage Arms) Bundle - Inch, SYS60_DK24TR02

Inspection Arsenal, Portable CMM (Gage Arms) Bundle - Inch, SYS60_DK24TR02

SKU

SYS60_DK24TR02

Special Price $4,170.00 $4,390.00 - You Save: $220 (5.01%)

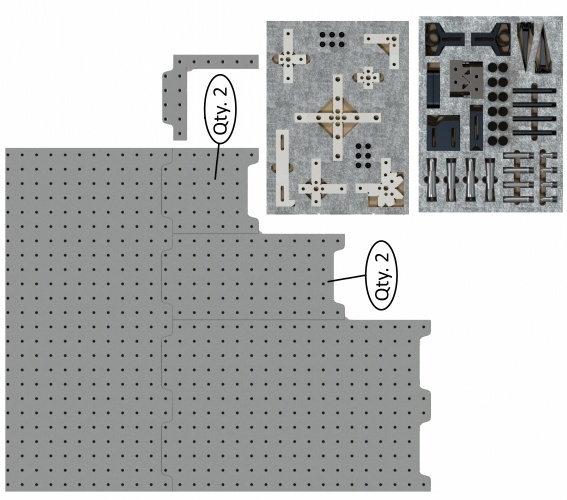

Pre-configured for all portable gage arms and laser trackers. 1/2″ thick clear anodized aluminum, 1 x 1″ hole pattern, 1/4-20 thread.

24 x 12″ Docking Plate
Two 6 x 6″ Loc-N-Load™ Plates
Two 6 x 12″ Loc-N-Load™ Plates
12 x 18″ Loc-N-Load™ Plate
Angle Plate
PLUS – TR-KIT-02, Complete Kit, 70-pc work holding kit.

Details

Description

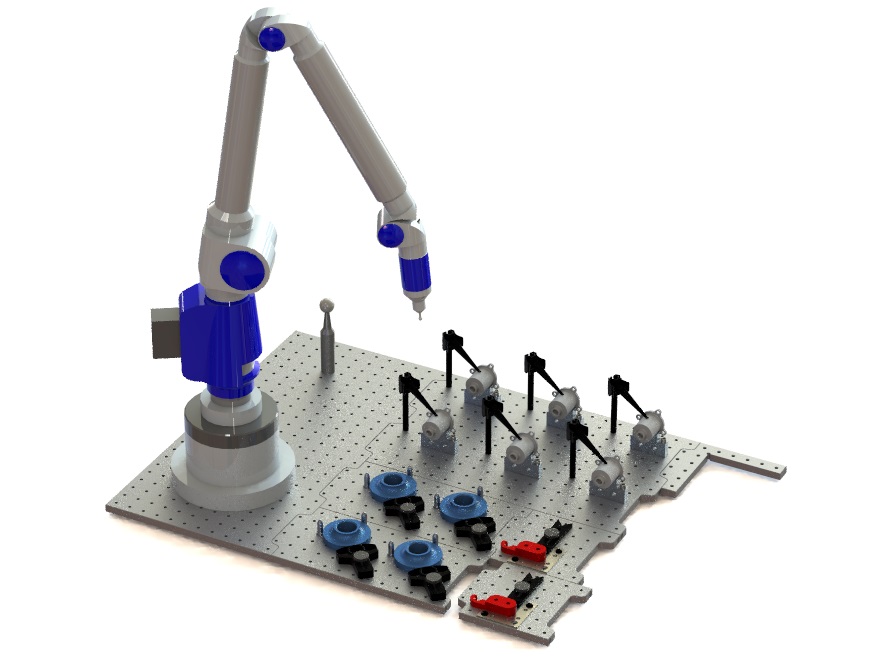

Further enhance the value of your portable 3D CMMs with the LEAN, quick-swap Loc-N-Load™ fixture system. Install the gage onto the Loc-N-Load™ base and start inspecting. Interlocking fixture plates quickly secure and release with the use of magnets creating highly repeatable setups.

Create multiple fast-swap setups for your gage arm!
Ready-made interlocking plates make low-cost fixtures.
Inspect more parts per shift, even with less-skilled inspectors.
Easily access your granite.
Use as dedicated tooling—add to job box.

Get started with a pre-configured bundle and add plates as work requires. Shop floor inspection fixturing need not be expensive - employ Loc-N-Load™ quick-swap fixturing.
