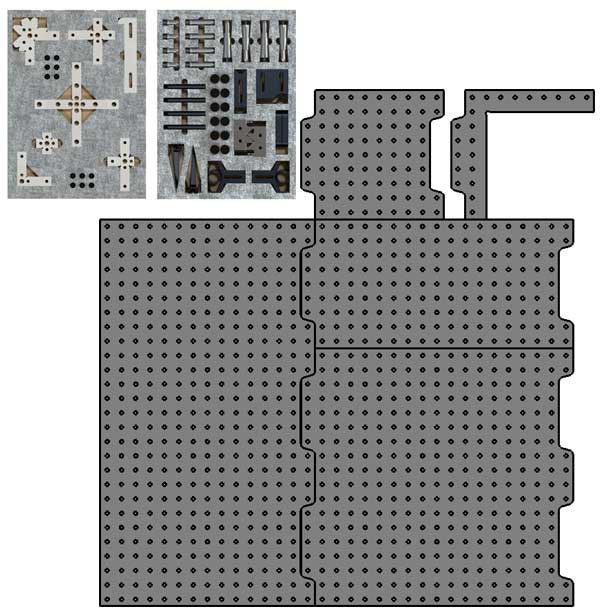

Inspection Arsenal, Portable CMM (Gage Arm) Bundle, SYS60M_DK540TR02

Further enhance the value of  your portable 3D CMMs with the LEAN, quick-swap Loc-N-Load™ fixture system in metric. Install the gage onto the Loc-N-Load™ base and start inspecting. Interlocking fixture plates quickly secure and release with the use of magnets creating highly repeatable setups.

Pre-configured for all portable gage arms and laser trackers.  13mm thick clear anodized aluminum, 20 x 20mm hole pattern, M6 thread.

• Create multiple fast-swap setups for your gage arm!
• Ready-made interlocking plates make low-cost fixtures.
• Inspect more parts per shift, even with less-skilled inspectors.
• Easily access your granite.
• Use as dedicated tooling—add to job box.

Get started with a pre-configured bundle and add plates as work requires.  Shop floor inspection fixturing need not be expensive - employ Loc-N-Load™ quick-swap fixturing.
