Inspection Arsenal, Optical Comparator Fixture System (6 inch Rail with STARTER Clamp Kit) Inch, SYS60_OC6TR03

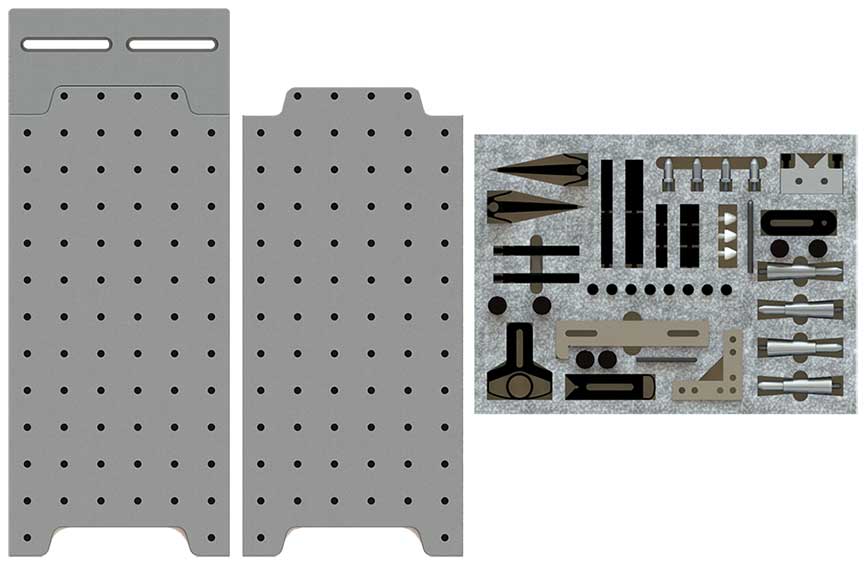

Bundle includes:
- 1 ea. OC-Dock-06, 6″ Docking rail
- 2 ea. LNL-PLT-0612, 6×12″ Loc-N-Load™ plates
- 1 ea. TR-KIT-03 STARTER Kit, 50+ pcs. work holding clamps.
STARTER Kit includes 50+ pcs. non-marring hold downs, v-blocks, stops, and stand-offs. Affordable enough to add to each optical comparator.

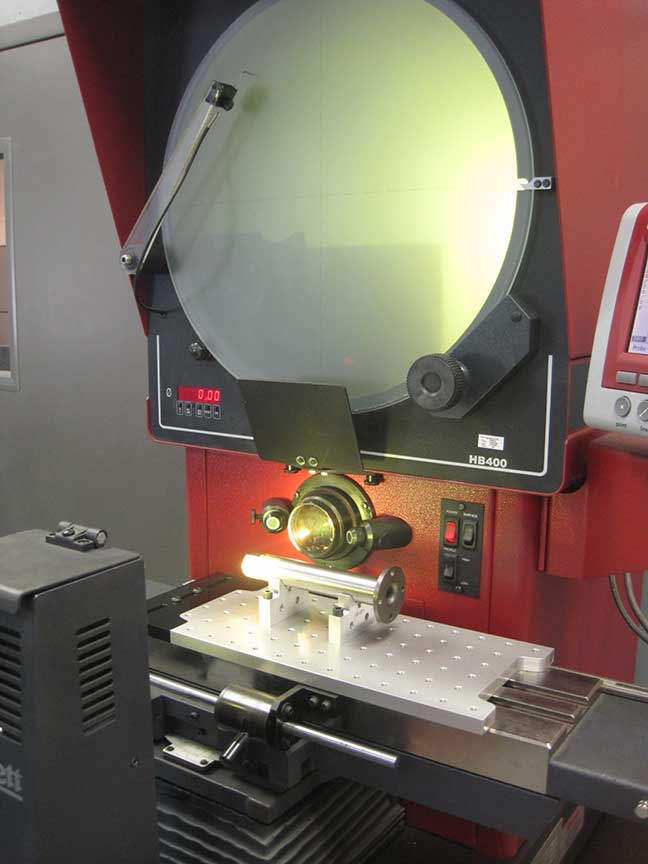

This smaller fixture system is perfect for your optical comparators’ inspection applications.
Description
The slimmest rail, the 6″ Docking Rail is made to fit optical comparators. To speed inspection of parts, alternate your set-ups between the (2) 6 x 12″ quick-swap fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The ‘STARTER’ clamp Kit is versatile enough to hold most any part. Add one kit per optical comparator to create redundancy in your inspection department. They can be purchased as needed and shipped same day!
Bundle includes: 1 each: Loc-N-Load™ 6” Docking Rail, and (2) 6×12” Loc-N-Load™ Plates;
PLUS TR-KIT-03 Starter Kit, 50+ pc work holding kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
Starter Kit includes:
(2 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts; (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) V-Block stand-offs, Hole Adjusters, Simple-Stop™ #-01, #-07 stops; plus hex key, thumb and button-head screws, 5-S Foam drawer inserts.
Loc-N-Load™ fixture rails, plates and work holding clamps create affordable, repeatable, and durable fixtures that reduce setup time and process more parts per shift. Plates can be dedicated and kept with the job box for fast, repeatable setups.
Also available are 6×6″ and 6×18″ fixture plates.
