Inspection Arsenal, Optical Comparator Fixture System (180mm Rail with STARTER Clamp Kit), SYS60M_OC180TR03
Bundle includes:
- 1 ea. OC-Dock-M180, 180mm Docking rail
- 2 ea. LNL-PLT-180, 180 x 360mm Loc-N-Load™ plates
- 1 ea. TR-KIT-03M STARTER Kit, 58 piece work holding clamps
STARTER Kit includes 58 piece non-marring hold downs, v-blocks, stops, and stand-offs. Affordable enough to add to each optical comparator.

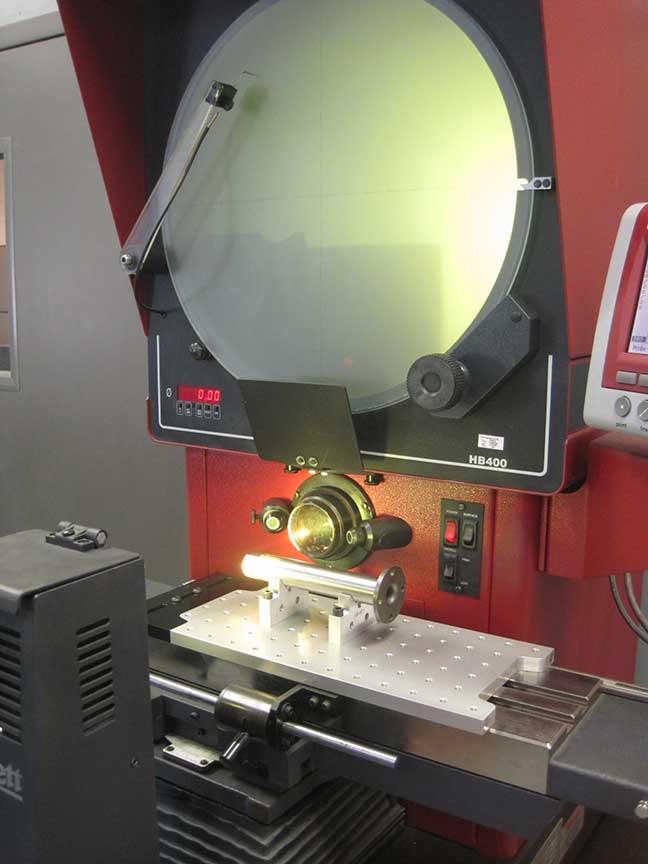

This smaller fixture system is perfect for your optical comparators’ inspection applications.
Description

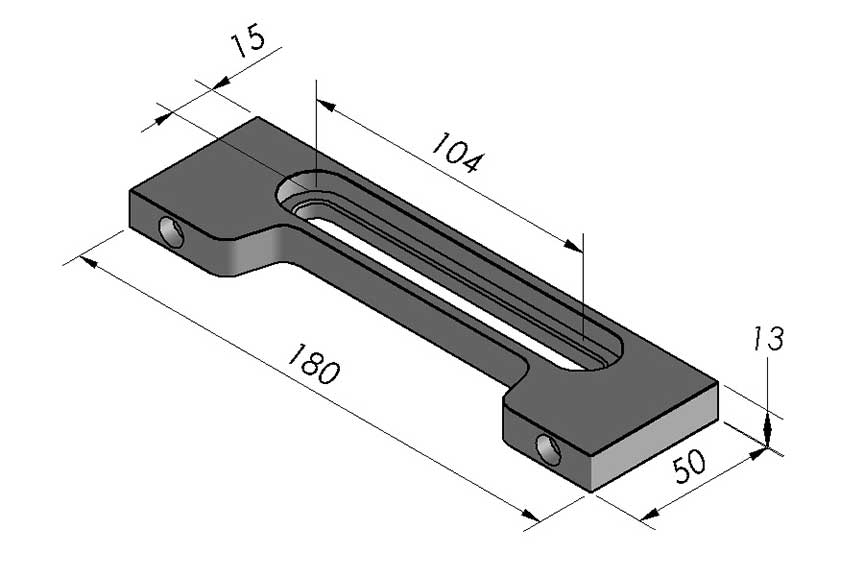

The slimmest rail, the 180mm Docking Rail is made to fit optical comparators. To speed inspection of parts, alternate your set-ups between the (2) 180 x 360mm LNL fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The ‘STARTER’ clamp Kit is versatile enough to hold most any part. Add one kit per optical comparator to create redundancy in your inspection department. They can be purchased as needed and shipped same day!
Bundle includes:
- 1 each: Loc-N-Load™ 180mm Docking Rail

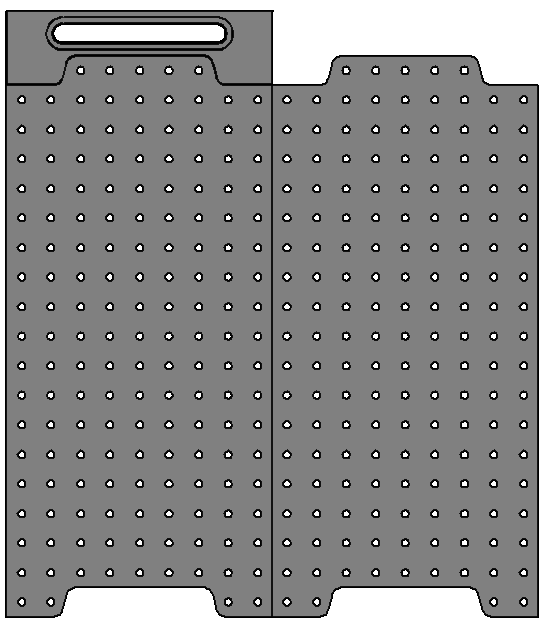

- (2) 180 x 360mm Loc-N-Load™ Plates
- TR-KIT-03M Starter Kit, 58 pc work holding kit containing non-marring hold downs, v-blocks, stops, and stand-offs.

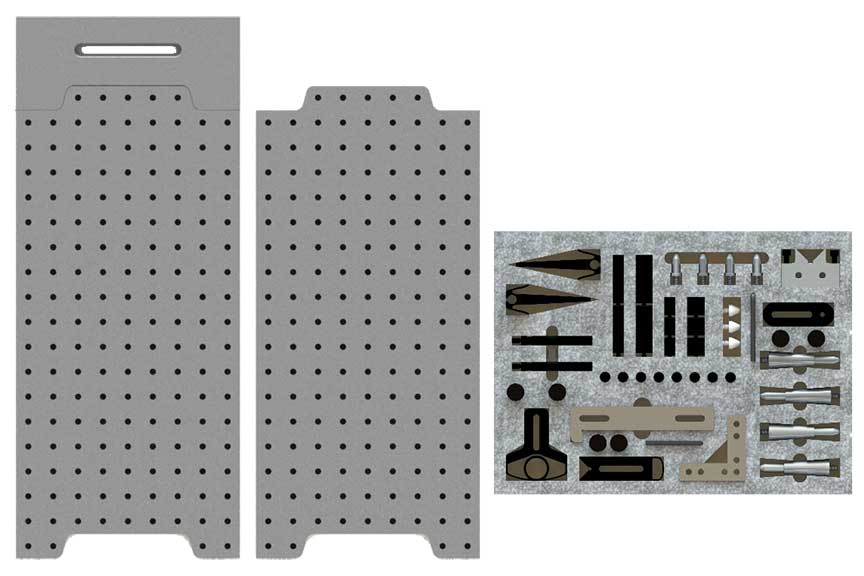

Starter Kit includes the following 58 pieces:
(2) Cross-Bow™ clamps; (2) D-Block Stops; (2) V-Block, 1 set; (8) Silver-Bullet™, 4 each 25mm and 75mm; (2) Steel shaft / stand-off; stackable; (2) Trigger-Finger™; (2) Hole Adjusters; (4) Simple-Stop™, 2 each – #01, #07; (13) Stand-offs, assorted sizes; (21) – Hex key plus assorted screws
M6 threads. Also available are 180 x 180mm fixture plates.
Loc-N-Load™ fixture rails, plates and work holding clamps create affordable, repeatable, and durable fixtures that reduce setup time and process more parts per shift. Plates can be dedicated and kept with the job box for fast, repeatable setups.
