Inspection Arsenal, Modular Tower System for Inspection - Inch, MT2-SYS-01

Our modular fixture tower expands the CMM work area, enabling inspectors to work more efficiently – and more effectively.

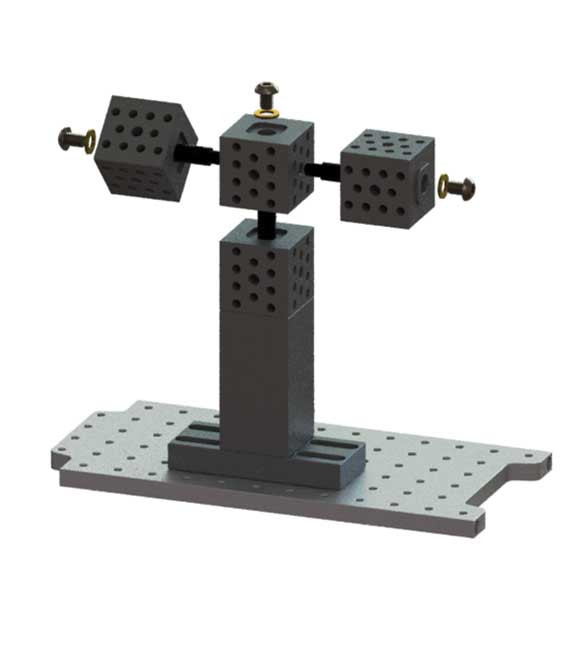

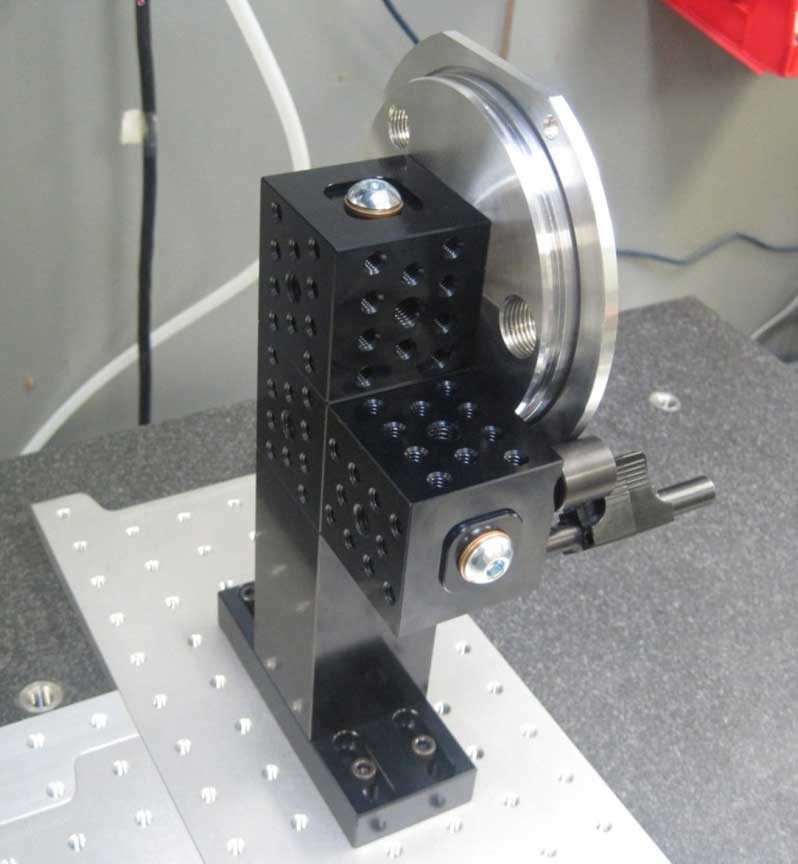

First in the line of towers is a 2” interlocking system that can be built both vertically and horizontally. Cubes added horizontally can be turned to any angle and locked securely.

• Building block design lets you determine the height you want!
• Staggered hole pattern adds flexibility for work holding.
• Adds even more versatility to Inspection Arsenal™ work holding and Loc-N-Load™ fixture plates.
• Build vertically and horizontally – it's secure at any angle.
• Works with all existing ¼-20 work holding.
• Maximize the CMM work envelope without interfering with probe travel.

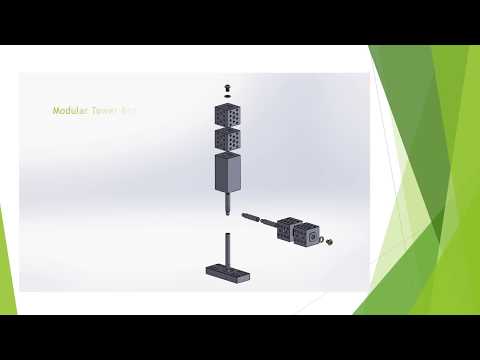

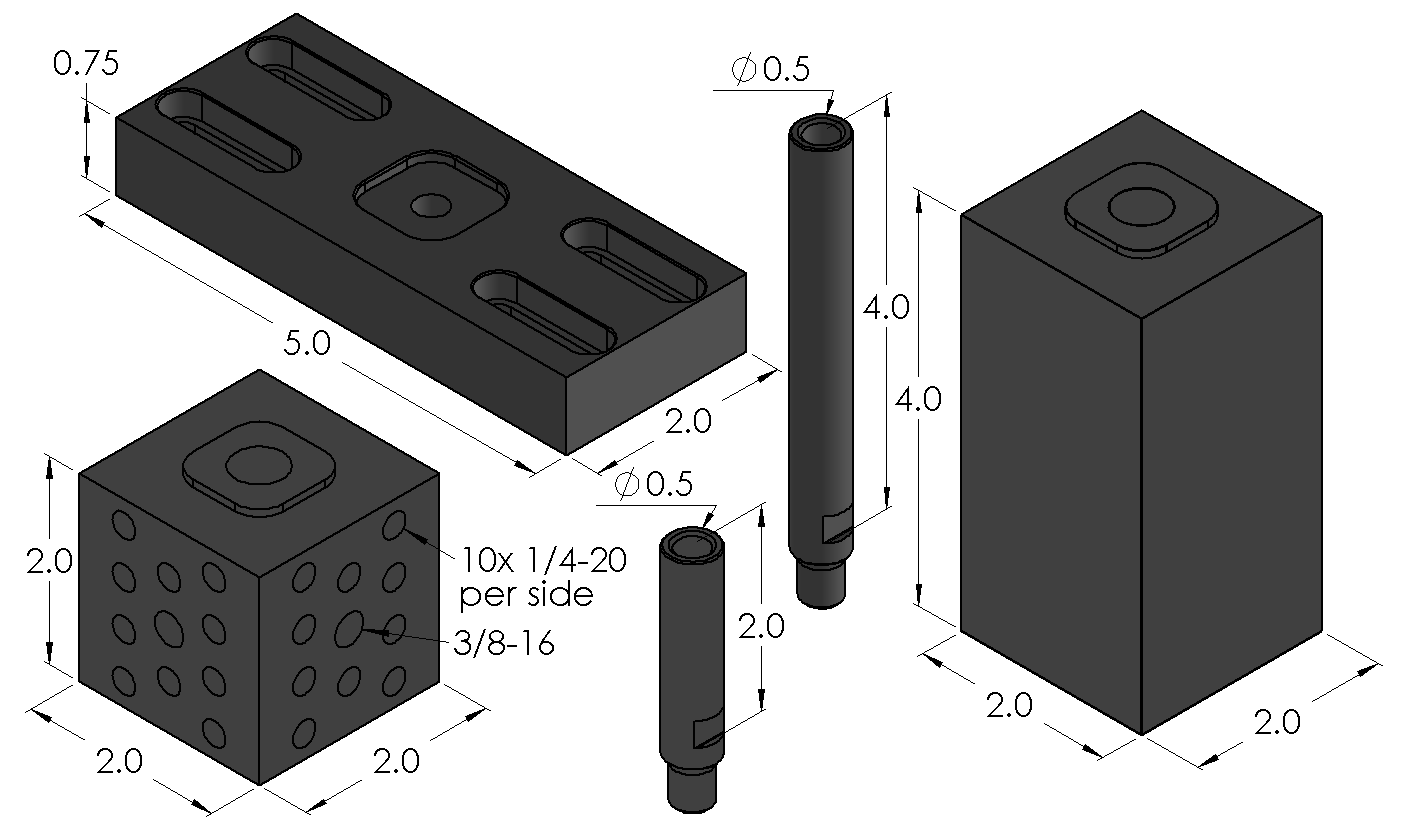

Pre-configured system includes several interchangeable components: an adjustable base, 2x2” cubes, 4” blank spacer block, and 2” and 4” posts that connect the system and provide pivot points.  Each cube has 10 (¼-20) holes per side for flexibility in holding positions and a 3/8-16 threaded centered hole that allows cubes to be added horizontally. Highly accurate components are designed with male/female locating features and are made from aluminum that is black anodized for durability.

Inspectors are no longer limited to the heights of a few towers. Maximize the work area of your CMM without interfering with the probe's travel.

Choose pre-configured system or order pieces individually.
