Inspection Arsenal, Loc-N-Load™ Interlocking Plates, Fixture plate 360 x 360, LNL-M360360
Fast-swap, interlocking Loc-N-Load™ metric CMM docking rails and fixture plates secure and release quickly for repeatable setups with the use of magnets. Interlocking CMM Fixture Plates – 13mm thick, M6 thread, 20 x 20mm hole pattern.
Description
Fast-swap, interlocking Loc-N-Load™ metric CMM fixture plates secure and release quickly for repeatable setups with the use of magnets. The 20 x 20mm hole pattern seamlessly integrates and the plates are quickly assembled without tools. Once assembled, inspectors can program several small setups, multi-part fixtures, or add large parts that span multiple plates. The docking rail stays out of the probe’s travel to maximize the CMM’s work envelope.

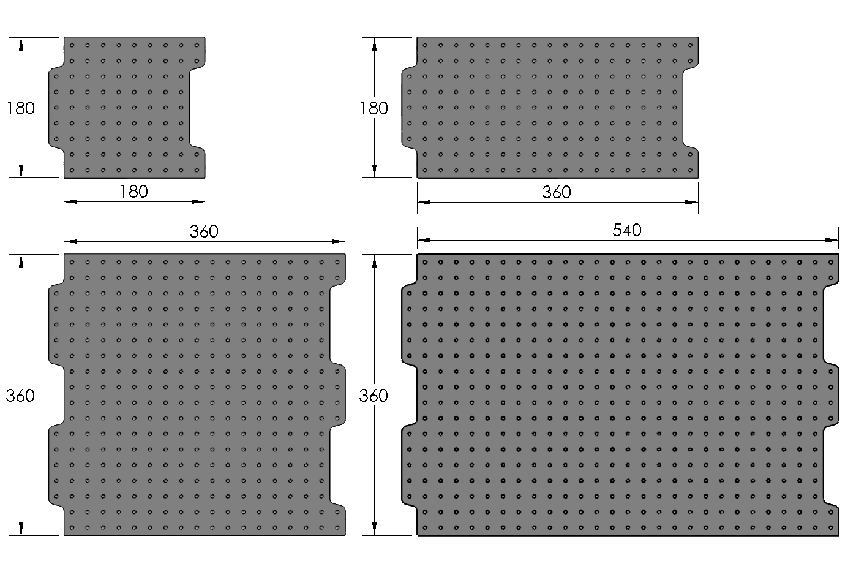

13mm thick, M6 thread, 20 x 20mm hole pattern; available in various sizes with custom sizes available upon request.
To add to your order, see Docking Rails and Accessory Plates.
