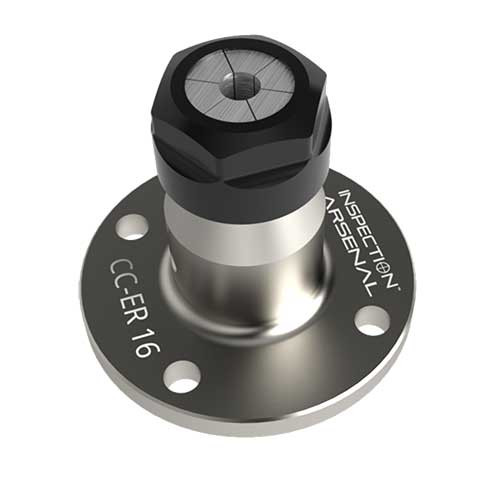

Inspection Arsenal, ER Collet Chuck – Flanged Bottom, CC-ER16

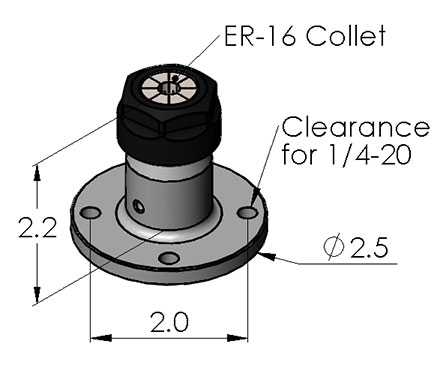

ER Collet Chuck with flanged bottom, opening from .012” to .416” (.3mm to 10.3mm). Accepts all standard ER16 collet sizes. COLLETS NOT INCLUDED
Description

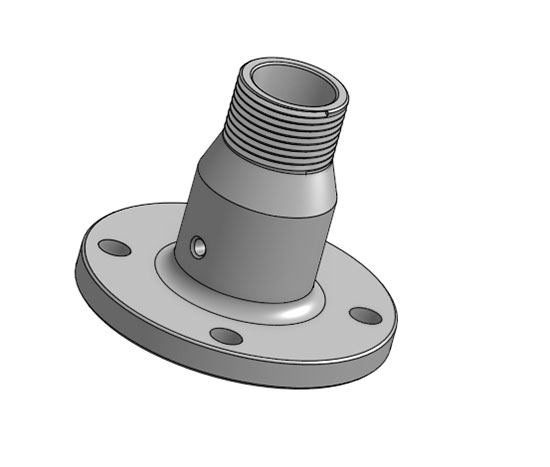

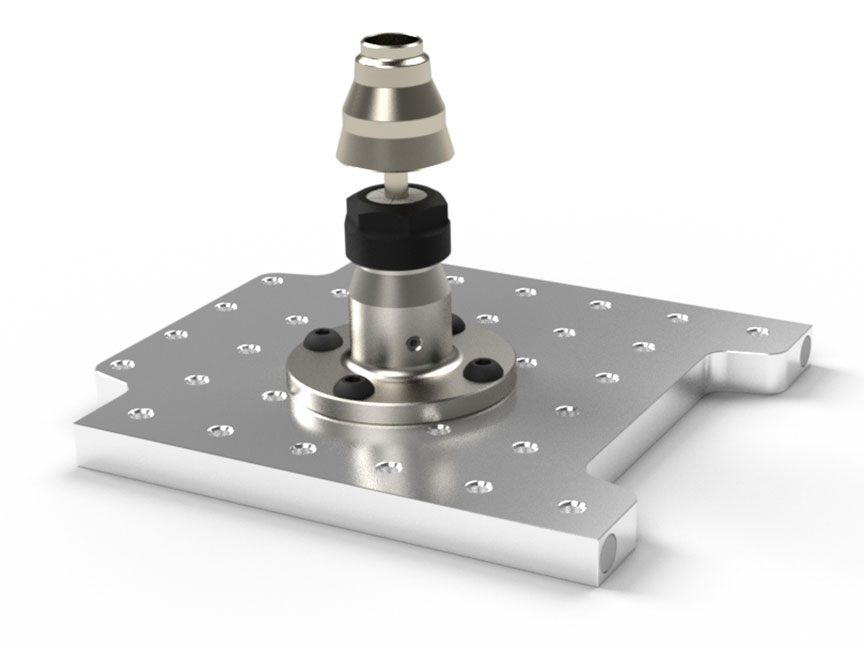

ER Collet Chucks are a great way to hold small diameter parts. The ER-16 collet with a flange adds stability for larger round parts from .012” to .416” (.3mm to 10.3mm) diameter. Has a threaded through hole to add a depth stop and a brass tipped set screw on the side to lock it in place. Made from 303 stainless steel for durability and corrosion resistance. Use one or add multiple collet chucks for a multi-part setup. Use on quick-swap Loc-N-Load™ plates or on existing 1” or ½” hole patterns and for ¼-20 or M6 threaded holes.
Accepts all standard ER16 collet sizes. COLLETS NOT INCLUDED
| Manufacturer | Inspection Arsenal |
|---|
