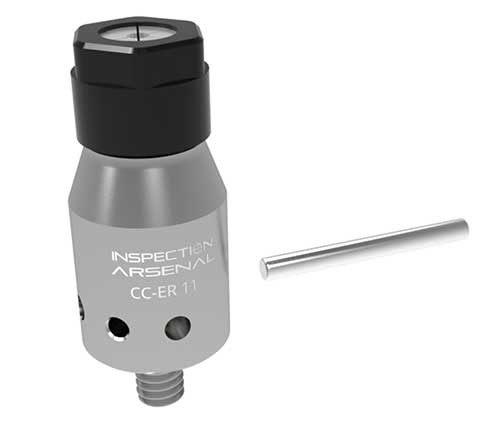

Inspection Arsenal, ER Collet Chuck, CC-ER11

Description

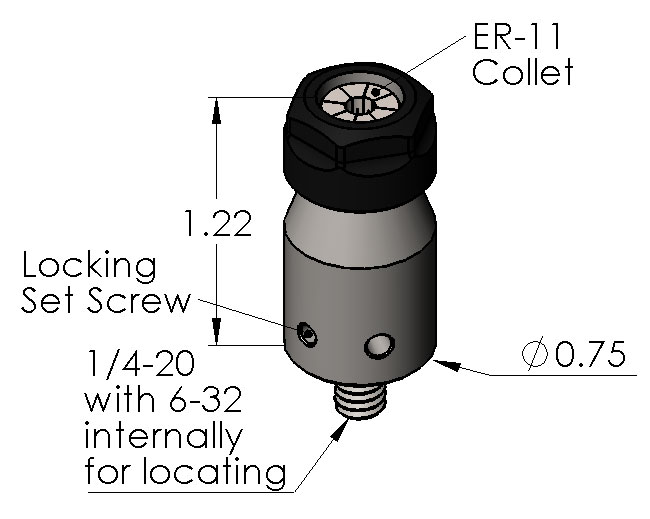

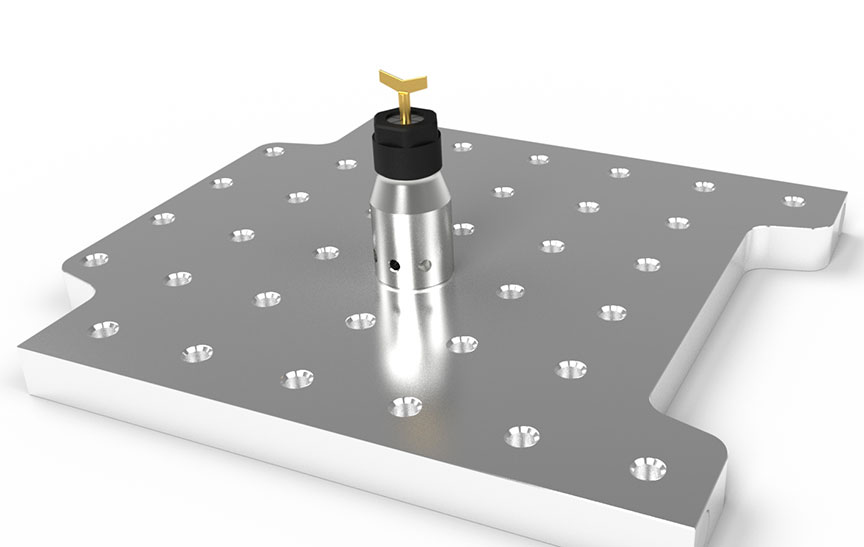

ER Collet Chucks are a great way to hold small diameter parts. The ER-11 holds parts from .012” to .312” (.3mm – 8mm) diameter. Has a threaded through hole to add a depth stop and a brass tipped set screw on the side to lock it in place. Made from 303 stainless steel for durability and corrosion resistance. Use one or add multiple collet chucks for a multi-part setup. Use on quick-swap Loc-N-Load™ plates or on existing 1” or ½” hole patterns and for ¼-20 or M6 threaded holes.

Accepts all standard ER11 collet sizes. COLLETS NOT INCLUDED.
