Inspection Arsenal, CMM Fixture System (720mm Dock with Starter Clamp Kit), SYSM3_DK720TR03

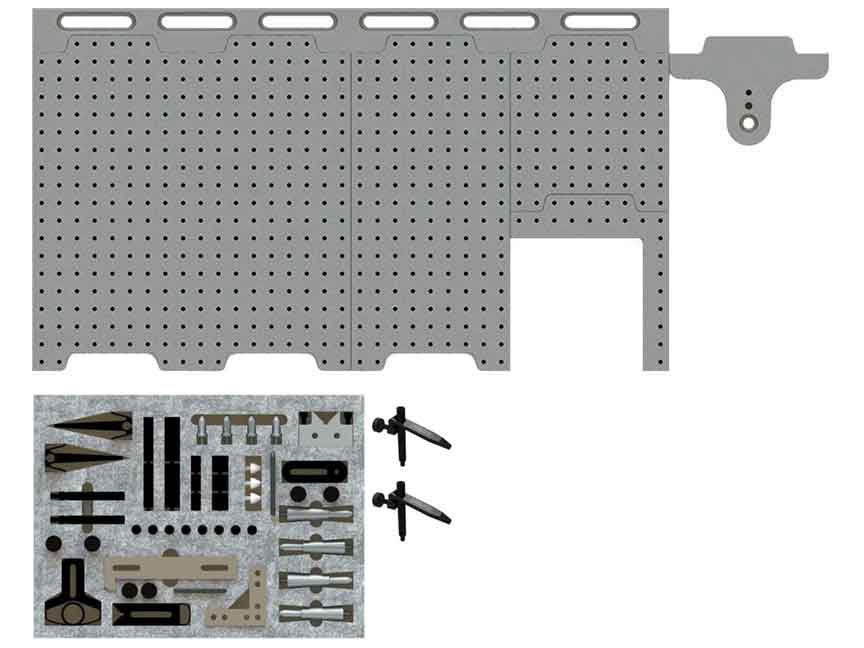

Bundle includes:

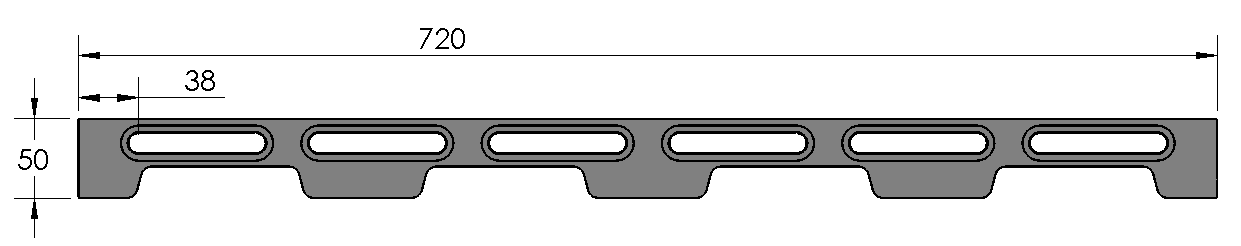

- (1) 50 x 720mm Docking Rail
- (1) 180 x 180mm Plate
- (1) 180 x 360mm Plate
- (1) 360 x 360mm Plate
- (1) 180 x 180mm Angle Plate
- (1) Qual Bar Plate
- (1) TR-KIT-03M Starter Work Holding Kit
Description
6-Pc. Loc-N-Load™ Metric fixture system (720mm Rail) PLUS TR-Kit-03M Starter Kit (62 pcs)
The 720mm Docking Rail fits most mid-sized CMMs. For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The 50-pc Starter Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. They can be purchased as needed and shipped same day!
Bundle includes: 1 each: Loc-N-Load™ 720mm Docking Rail, 180 x 180mm Plate, 180 x 360mm Plate, 360 x 360mm Plate, Angle Plate, Qual Bar Plate,
PLUS TR-KIT-03M Starter Work Holding Kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
STARTER Kit includes:
- (2) Cross-Bow™
- (2) D-Blocks™
- (2) Trigger-Finger™
- (2) Lever Clamps 2.5″ (shafts included)
- (2) V-Block 1 set
- (8) Silver-Bullet™, 4 each – 1″ and 3″
- (2) Steel shaft / stand-off; stackable
- (2) Hole Adjusters
- (4) Simple-Stops™ – 2 each #01, #07
- (13) Stand-offs, assorted sizes
- (21) Hex Keys, plus assorted screws
