Inspection Arsenal, CMM Fixture System (720mm Dock with Complete Clamp Kit), SYSM3_DK720TR02

Description

6-Pc. Loc-N-Load™ fixture system (720mm Rail) PLUS Complete Clamp Kit (82 pcs)

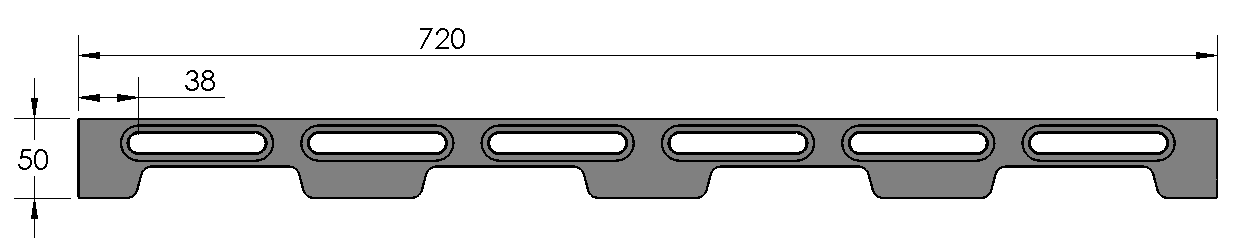

The 720mm Docking Rail fits most mid-sized CMMs. For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The Complete Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. Bundle System and additional pieces can be purchased as needed and shipped same day!  Plates have a 20 x 20mm hole pattern.

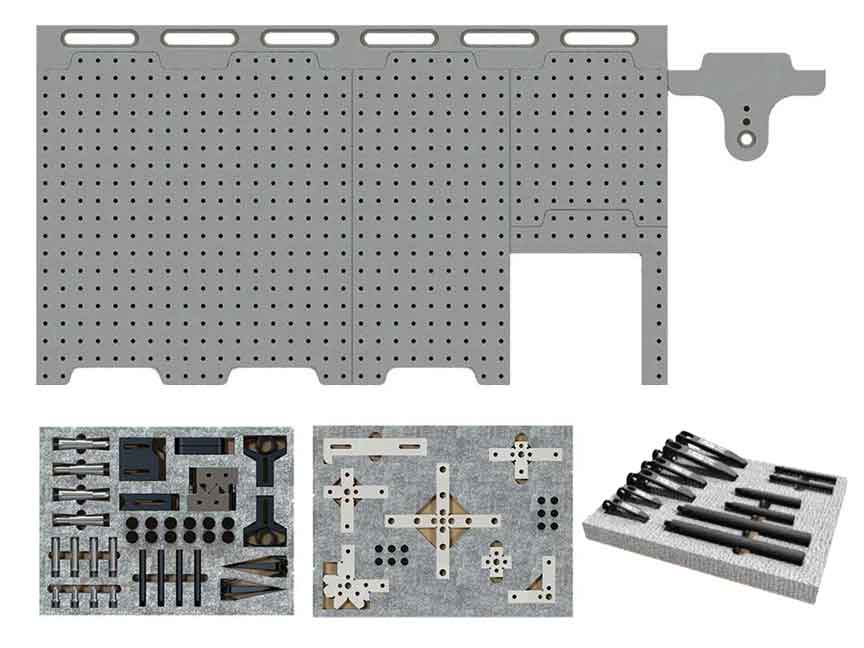

Bundle includes: 1 each: Loc-N-Load™ 720mm Docking Rail, 180 x 180mm Plate, 180 x 360mm Plate, 360 x 360mm Plate, Angle Plate, Qual Bar Plate, Plus TR-KIT-02M Inspection Arsenal® Complete Kit

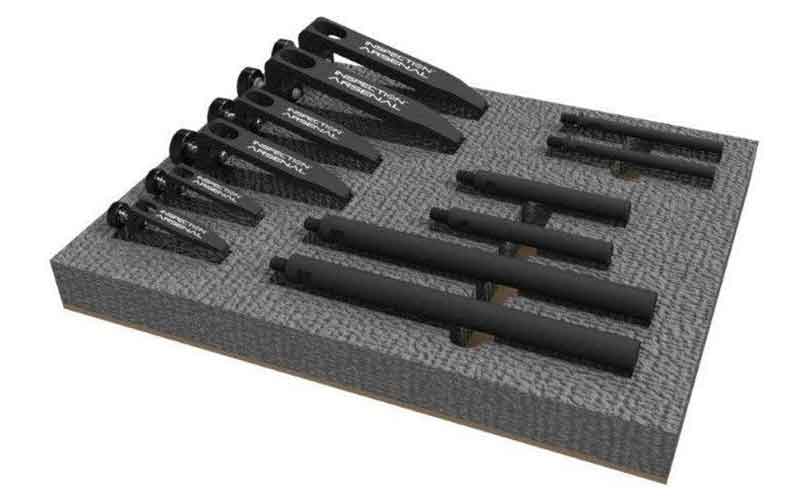

Complete Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2 ea.) Trigger-Block™ clamps and V-Block stand-offs; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) -07 and -02 Simple-Stop™ rails and stops; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
