Inspection Arsenal, CMM Fixture System (540mm Dock with WORKS Kit), SYSM2_DK540TR01

Description

5-Pc. Loc-N-Load™ Metric fixture system (540mm Rail) PLUS WORKS Work Holding Kit (158 pcs)

The 540mm Docking Rail fits most mid-sized CMMs.  Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The 146-pc Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department.  System and additional pieces can be purchased as needed and shipped same day!  Plates are 12.7mm thick and have a 20 x 20mm hole pattern, M6 threads.

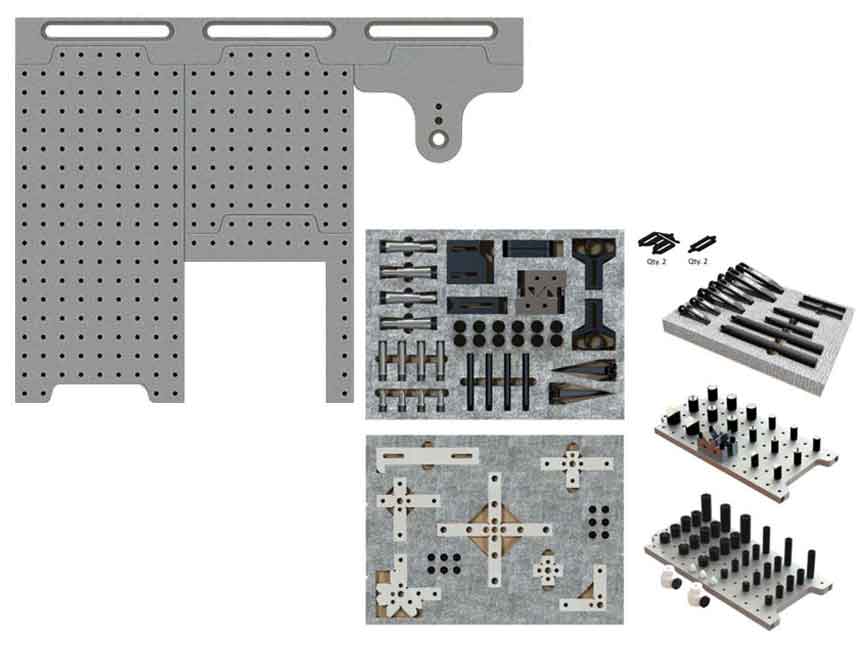

Bundle includes: (1) Loc-N-Load™ 540mm Docking Rail; (1) 180 x 180mm Plate; (1) 180 x 360mm Plate;, (1) Angle Plate, (1) Qual Bar Plate, plus TR-KIT-01 Inspection Arsenal® Work Holding Kit.

The WORKS-Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Block™ clamps, (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (7)  Simple-Stop™ rails and stops; (2) Spring-Loc™ clamps; (2) Sliding Stop™ stops; (2) Hole Adjusters; (2) V-Blocks; (37) Stand-off & Rest Pad set; (23) Magnetic Riser Set; plus hex key, thumb and button-head screws.
