Inspection Arsenal, CMM Fixture System (540mm Dock with Starter Clamp Kit), SYSM2_DK540TR03
Bundle includes:

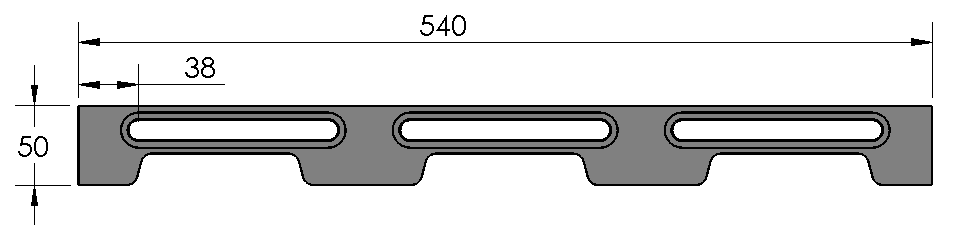

- (1) 50 x 540mm Docking Rail

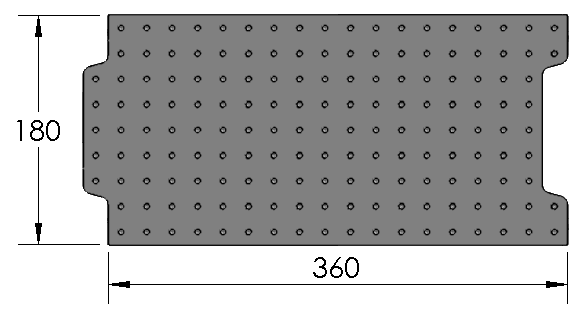

- (1) 180 x 180mm Plate
- (1) 180 x 360mm Plate
- (1) 180 x 180mm Angle Plate
- (1) Qual Bar Plate
- (1) TR-KIT-03M Starter Work Holding Kit
Description

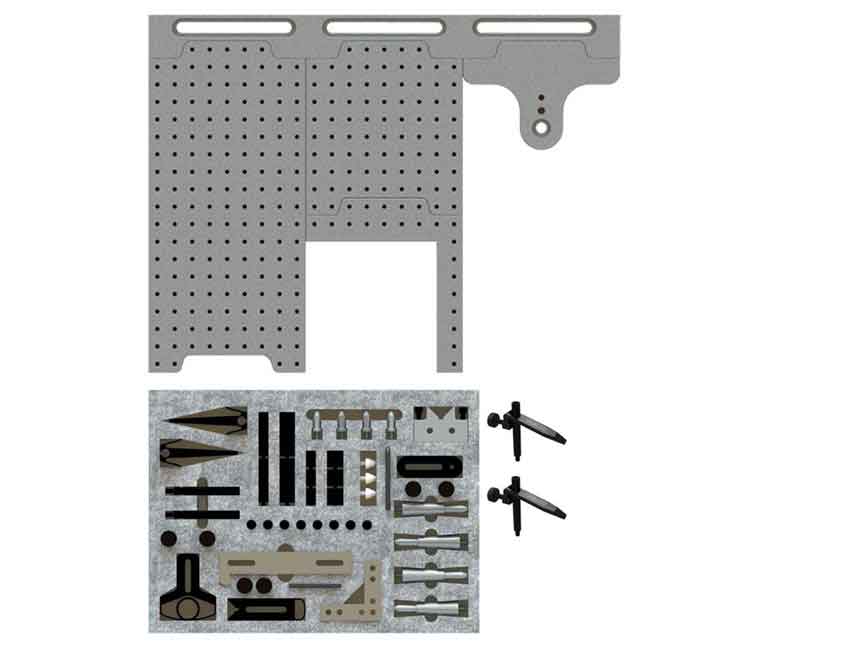

5-Pc. Loc-N-Load™ Metric fixture system (540mm Rail) PLUS TR-Kit-03M Starter Kit (62 pcs)
The 540mm Docking Rail fits most mid-sized CMMs. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The 58-pc Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. System and additional pieces can be purchased as needed and shipped same day! Plates have a 20 x 20mm hole pattern.
Bundle includes: (1) Loc-N-Load™ 540mm Docking Rail; (1) 180 x 180mm Plate; (1) 180 x 360mm Plate;, (1) Angle Plate, (1) Qual Bar Plate,
PLUS TR-KIT-03 Starter Work holding kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
STARTER Kit (METRIC) includes:
- (2) Cross-Bow™
- (2) D-Blocks™
- (2) Trigger-Finger™
- (2) Lever Clamps 2.5″ (shafts included)
- (2) V-Block 1 set
- (8) Silver-Bullet™, 4 each – 1″ and 3″
- (2) Steel shaft / stand-off; stackable
- (2) Hole Adjusters
- (4) Simple-Stops™ – 2 each #01, #07
- (13) Stand-offs, assorted sizes
- (21) Hex Keys, plus assorted screws
