Inspection Arsenal, CMM Fixture System (540mm Dock with Complete Clamp Kit), SYSM2_DK540TR02
Bundle includes:

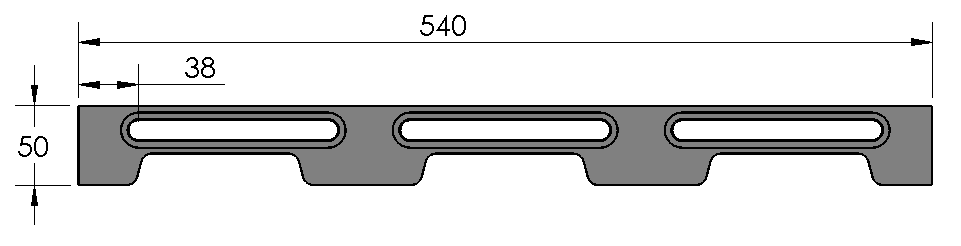

- (1) 50 x 540mm Docking Rail
- (1) 180 x 180mm Plate

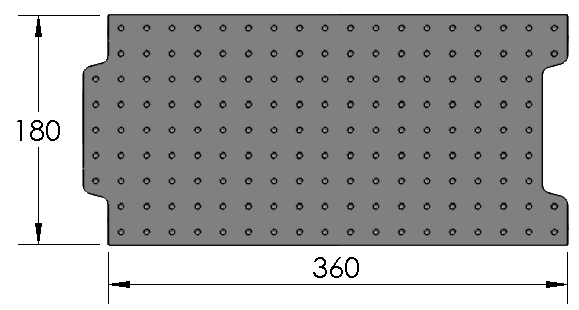

- (1) 180 x 360mm Plate
- (1) 180 x 180mm Angle Plate
- (1) Qual Bar Plate
- Plus – (1) TR-KIT-02M, Complete Work Holding kit
Description

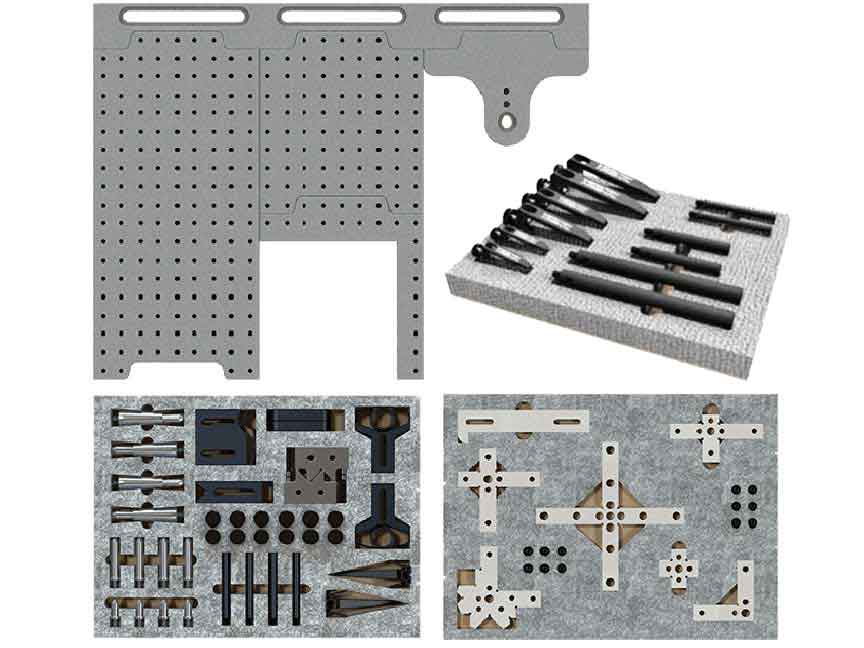

5-Pc. Loc-N-Load™ fixture system (540mm Rail) PLUS Complete Clamp Kit (82 pcs)
The 540mm Docking Rail fits most mid-sized CMMs. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The Complete Clamp Kit provides everything you need to inspect virtually any part. Add one Bundle per CMM to create redundancy in your Quality Department. Bundle System and additional pieces can be purchased as needed and shipped same day! Plates have a 20 x 20mm hole pattern.
Bundle includes: (1) Loc-N-Load™ 540mm Docking Rail; (1) 180 x 180mm Plate; (1) 180 x 360mm Plate;, (1) Angle Plate, (1) Qual Bar Plate,
Complete Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2 ea.) Trigger-Block™ clamps and V-Block stand-offs; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) -07 and -02 Simple-Stop™ rails and stops; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
