Inspection Arsenal, CMM Fixture System (360mm Dock with WORKS Clamp Kit), SYSM1_DK360TR01

Description

5-Pc. Loc-N-Load™ Metric fixture system (360mm Rail) PLUS WORKS Work Holding Kit (158 pcs)

The 360mm CMM Fixture System is perfect for smaller CMM inspection applications. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The 146-pc Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. System and additional pieces can be purchased as needed and shipped same day!  Plates are 12.7mm thick, with a 20 x 20mm hole pattern, M6 threads.

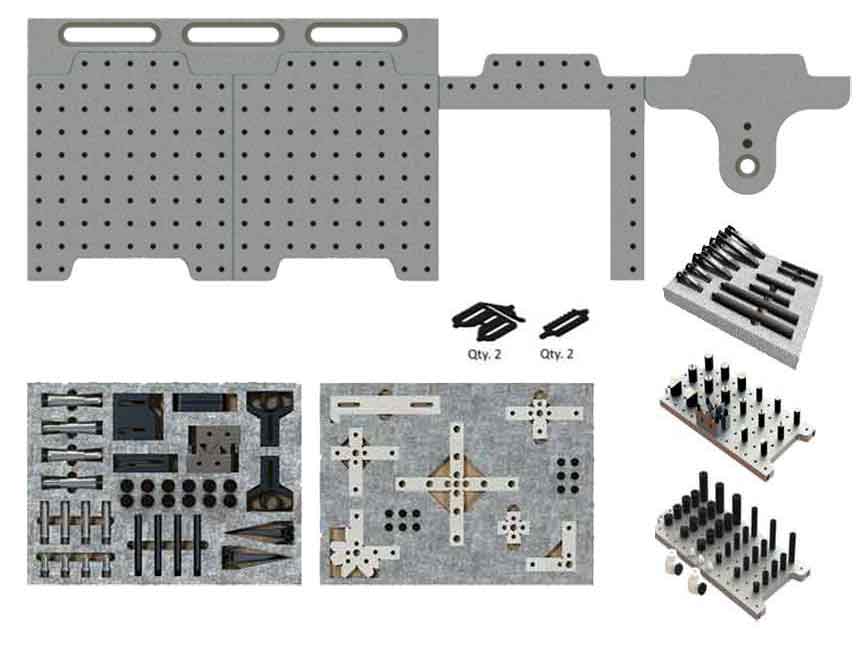

Bundle includes: (1) Loc-N-Load™ 360mm Docking Rail; (2) 180 x 180mm Plates, (1) Angle Plate, (1) Qual Bar Plate, plus TR-KIT-01 Inspection Arsenal® Work Holding Kit.

WORKS Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Block™ clamps, (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea.) 1, 2, and 3” Silver-Bullet™ stand-offs, (7)  Simple-Stop™ rails and stops; (2) Spring-Loc™ clamps; (2) Sliding Stop™ stops; (2) Hole Adjusters; (2) V-Blocks; (34) Stand-off & Rest Pad set; (18) Magnetic Riser Set; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.

These Loc-N-Load™ combinations of fixture rails, plates and our largest kit of all work holding clamps create affordable fixtures that reduce setup time and help to process more parts per shift.
