Inspection Arsenal, CMM Fixture System (360mm Dock with Starter Clamp Kit), SYSM1_DK360TR03
Bundle includes:
- (1) 50 x 360mm Docking Rail
- (2) 180 x 180mm Plates
- (1) 180 x 180mm Angle Plate
- (1) Qual Bar Plate
- Plus (1) TR-KIT-03M, Starter Work Holding Kit
This smaller fixture system is perfect for smaller CMM inspection applications.
Description
5-Pc. Loc-N-Load™ Metric fixture system (360mm Rail) PLUS TR-Kit-03M Starter Kit (62 pcs)
The 360mm CMM Fixture System easily installs on all CMMs. The Starter Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department.
These Loc-N-Load™ combinations of fixture rails, plates and our largest kit of all work holding clamps create affordable fixtures that reduce setup time and help to process more parts per shift.

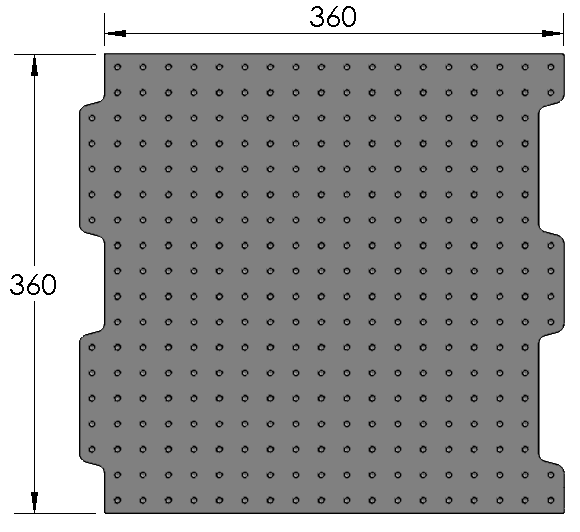

For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. They can be purchased as needed and shipped same day! Plates have a 20 x 20mm hole pattern.

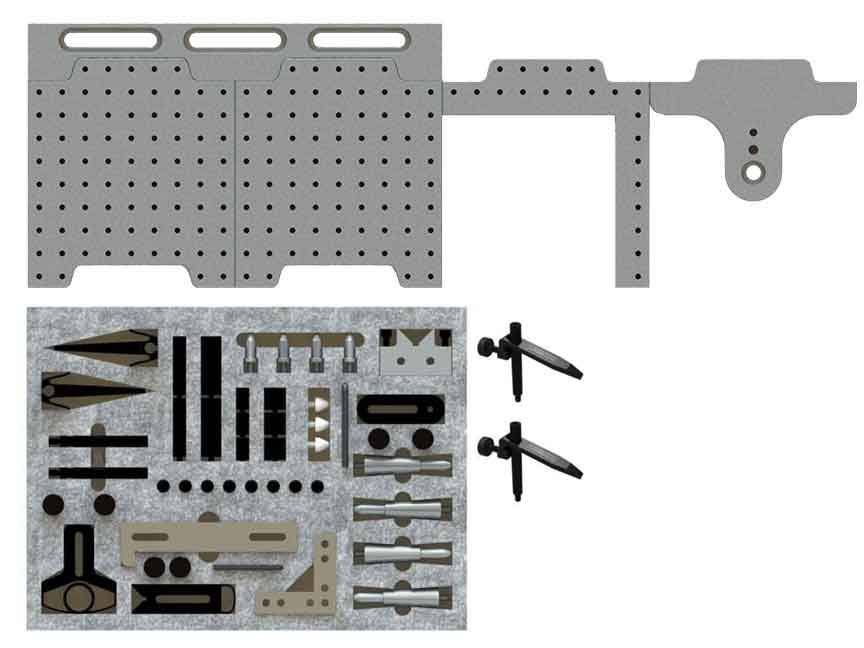

Bundle includes: (1) Loc-N-Load™ 360mm Docking Rail; (2) 180 x 180mm Plates; (1) Angle Plate; (1) Qual Bar Plate; plus TR-KIT-03 Starter Work Holding Kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
Starter Kit includes:
- (2) Cross-Bow™
- (2) D-Blocks™
- (2) Trigger-Finger™
- (2) Lever Clamps 2.5″ (shafts included)
- (2) V-Block 1 set
- (8) Silver-Bullet™, 4 each – 1″ and 3″
- (2) Steel shaft / stand-off; stackable
- (2) Hole Adjusters
- (4) Simple-Stops™ – 2 each #01, #07
- (13) Stand-offs, assorted sizes
- (21) Hex Keys, plus assorted screws
