Inspection Arsenal, CMM Fixture System (360mm Dock with Complete Clamp Kit), SYSM1_DK360TR02
Bundle includes:
- (1) 50 x 360mm Docking Rail
- (2) 180 x 180mm Plates
- (1) 180 x 180mm Angle Plate
- (1) Qual Bar Plate
- Plus – (1) TR-KIT-02M, Complete Work Holding Kit.
This fixture system is perfect for smaller CMM inspection applications.

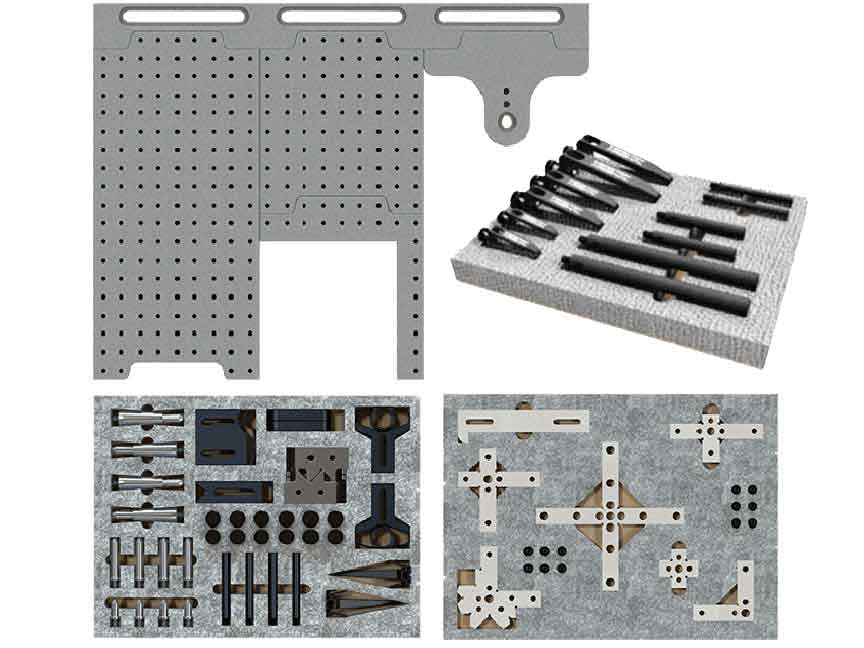

5-Pc. Loc-N-Load™ fixture system (360mm Rail) PLUS Complete Clamp Kit (82 pcs)
The 360mm CMM Fixture System easily installs on all CMMs. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The Complete Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. Bundle System and additional pieces can be purchased as needed and shipped same day! Plates have a 20 x 20mm hole pattern.
Bundle includes: (1) Loc-N-Load™ 360mm Docking Rail; (2) 180 x 180mm Plates, (1) Angle Plate, (1) Qual Bar Plate,
Complete Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2 ea.) Trigger-Block™ clamps and V-Block stand-offs; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) -07 and -02 Simple-Stop™ rails and stops; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
