Inspection Arsenal, CMM Fixture System (30″ Dock with WORKS Clamp Kit), SYS20_DK30TR01
Bundle includes:
- (1) LNL-Dock-30, 30″ docking rail
- (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate
- (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate
- (1) LNL-PLT-1212, 12×12″ Loc-N-Load plate
- (1) LNL-ANGL-0306, 6″ Angle Plate / Stop
- (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate
- Plus – (1) TR-KIT-01 Inspection Arsenal® “WORKS” Work Holding Kit
Affordable enough to add to each CMM.
Description
6-Pc. Loc-N-Load™ fixture plate system (30″ Rail) PLUS the ‘WORKS’ Work Holding Kit (158 pcs)
The largest of rails, the 30″ Docking Rail fits most mid-sized CMMs. For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The ‘WORKS’ Work Holding Kit provides everything you need to inspect virtually any part. Add one kit per CMM to create redundancy in your Quality Department. They can be purchased as needed and shipped same day!

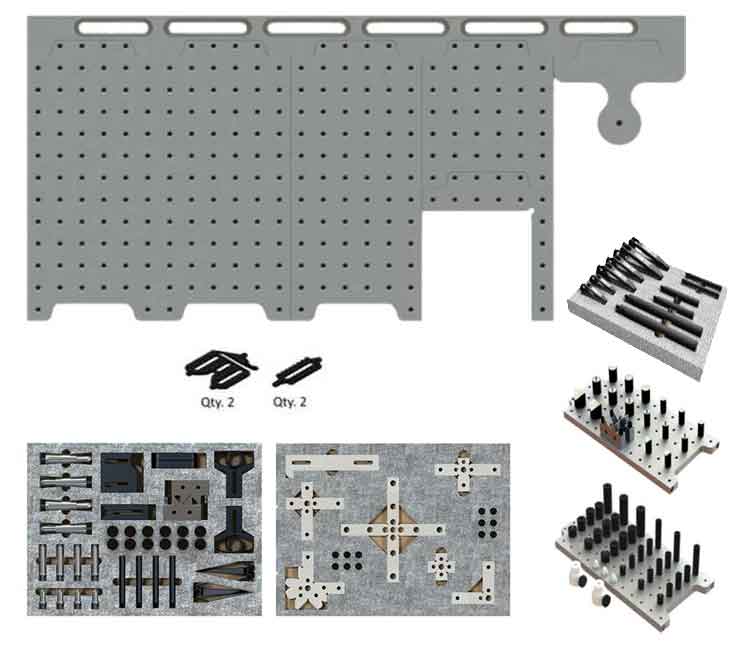

Bundle includes: (1) Loc-N-Load™ 30” Docking Rail, (1) 6×6” Loc-N-Load™ Plate, (1) 6×12” Loc-N-Load™ Plate, (1) 12×12” Loc-N-Load™ Plate, (1) LNL-ANGL-0306, 6″ Angle Plate / Stop, (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate, plus TR-KIT-01 Inspection Arsenal® Work Holding Kit.

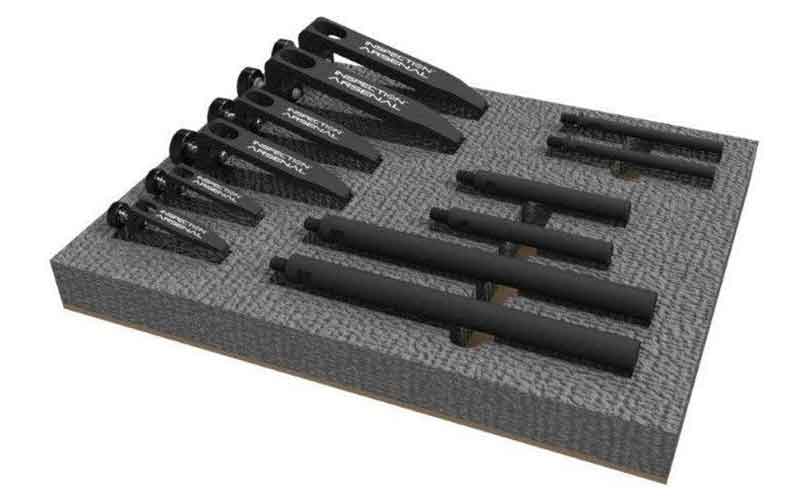

WORKS Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Block™ clamps, (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea.) 1, 2, and 3” Silver-Bullet™ stand-offs, (7) Simple-Stop™ rails and stops; (2) Spring-Loc™ clamps; (2) Sliding Stop™ stops; (2) Hole Adjusters; (2) V-Blocks; (34) Stand-off & Rest Pad set; (18) Magnetic Riser Set; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
