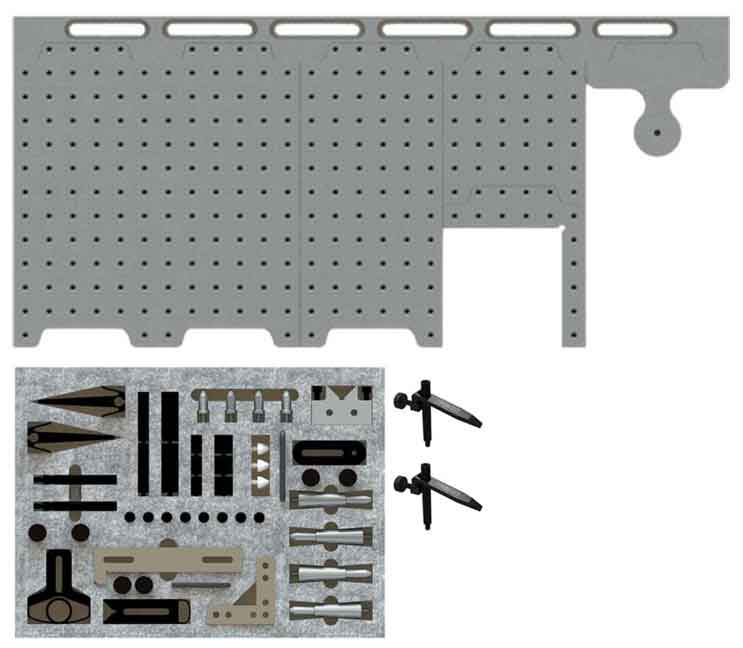

Inspection Arsenal, CMM Fixture System (30″ Dock with Starter Clamp Kit), SYS20_DK30TR03
Bundle includes:
- (1) LNL-Dock-30, 30″ docking rail
- (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate
- (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate
- (1) LNL-PLT-1212, 12×12″ Loc-N-Load plate
- (1) LNL-ANGL-0306, 6″ Angle Plate / Stop
- (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate
- (1) TR-KIT-03 Starter Work Holding Kit
Affordable enough to add to each CMM.
Description
6-Pc. Loc-N-Load™ fixture system (30″ Rail) PLUS TR-Kit-03 Starter Kit (62 pcs)
The largest 30″ Docking Rail fits most mid-sized CMMs. For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in an interlocking style. Plates interlock magnetically to remain firmly secured to one another. They can be purchased as needed and shipped same day!
Bundle Includes: (1) LNL-Dock-30, 30″ docking rail; (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate; (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate; (1) LNL-PLT-1212, 12×12″ Loc-N-Load plate; (1) LNL-ANGL-0306, 6″ Angle Plate / Stop; (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate; PLUS TR-KIT-03 Starter Work Holding kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
Starter Kit includes:
- (2) Cross-Bow™
- (2) D-Blocks™
- (2) Trigger-Finger™
- (2) Lever Clamps 2.5″ (shafts included)
- (2) V-Block 1 set
- (8) Silver-Bullet™, 4 each – 1″ and 3″
- (2) Steel shaft / stand-off; stackable
- (2) Hole Adjusters
- (4) Simple-Stops™ – 2 each #01, #07
- (13) Stand-offs, assorted sizes
- (21) Hex Keys, plus assorted screws
