Inspection Arsenal, CMM Fixture System (18″ with WORKS Clamp Kit), SYS10_DK18TR01
Bundle includes:
- (1) LNL-Dock-18, 18″ docking rail
- (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate
- (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate
- (1) LNL-ANGL-0306, 6″ Angle Plate / Stop
- (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate
- Plus – (1) TR-KIT-01 Inspection Arsenal® “WORKS” Work Holding Kit
Affordable enough to add to each CMM.
Description

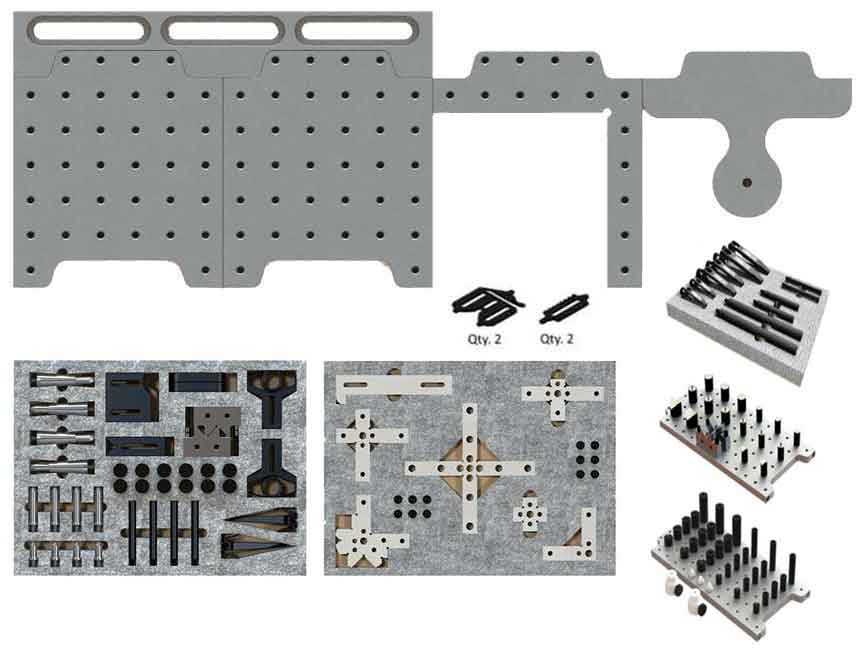

5-Pc. CMM Fixture Plate System (18″ Rail) PLUS the ‘WORKS’ Work Holding Kit (158 pcs)
All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in an interlocking style. Plates interlock magnetically to remain firmly secure to one another. They can be purchased as needed and shipped same day! Easily installs on CMMs and most laser equipment- use in applications from part inspection and laser marking, in addition to other marking processes – even silk screen.
Bundle Includes (1) LNL-Dock-18, 18″ docking rail; (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate; (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate; (1) LNL-ANGL-0306, 6″ Angle Plate / Stop, (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate plus TR-KIT-01 Inspection Arsenal® Work Holding Kit.

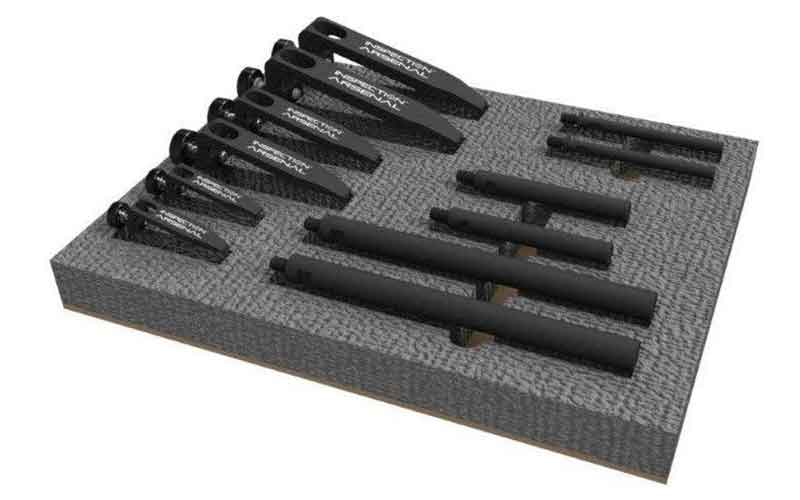

WORKS Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Block™ clamps, (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea.) 1, 2, and 3” Silver-Bullet™ stand-offs, (7) Simple-Stop™ rails and stops; (2) Spring-Loc™ clamps; (2) Sliding Stop™ stops; (2) Hole Adjusters; (2) V-Blocks; (34) Stand-off & Rest Pad set; (18) Magnetic Riser Set; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
