Inspection Arsenal, CMM Fixture System (18″ with Complete Clamp Kit), SYS10_DK18TR02

In stock

Bundle includes:

  • (1) LNL-Dock-18, 18″ docking rail
  • (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate
  • (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate
  • (1) LNL-ANGL-0306, 6″ Angle Plate / Stop
  • (1) LNL-QUAL-PLT,  6 x 4″ Indicator Ball Plate
  • PLUS – (1) TR-KIT-02  Inspection Arsenal® Complete Work Holding Kit

Affordable enough to add to each CMM.

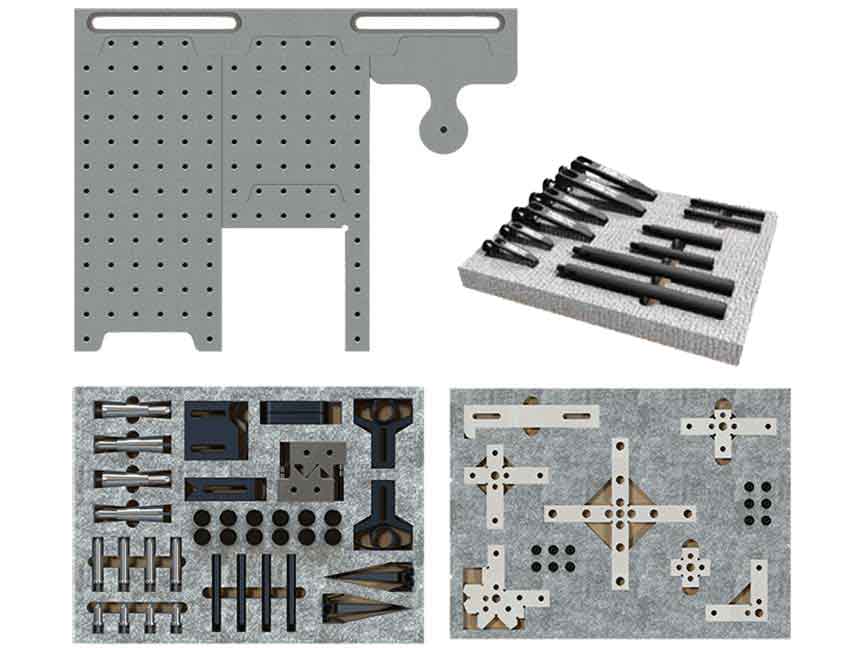

5-Pc. CMM Fixture Plate System  (18″ Rail) PLUS Complete Clamp Kit (82 pcs)

For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The Complete Clamp Kit provides everything you need to inspect virtually any part. Add one Bundle per CMM to create redundancy in your Quality Department.  Bundle System and additional pieces can be purchased as needed and shipped same day!

Bundle Includes: (1) LNL-Dock-18, 18″ docking rail; (1) LNL-PLT-0606, 6×6″ Loc-N-Load plate; (1) LNL-PLT-0612, 6×12″ Loc-N-Load plate; (1) LNL-ANGL-0306, 6″ Angle Plate / Stop; (1) LNL-QUAL-PLT,  6 x 4″ Indicator Ball Plate; Plus TR-KIT-02, Inspection Arsenal® Complete Kit

Complete Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2 ea.) Trigger-Block™ clamps and V-Block stand-offs; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) -07 and -02 Simple-Stop™ rails and stops; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
