Inspection Arsenal, CMM Fixture System (12″ with WORKS Clamp Kit), SYS05_DK12TR01
Bundle includes:
- (1) LNL-Dock-12, 12″ docking rail
- (2) LNL-PLT-0606, 6×6″ Loc-N-Load plates
- (1) LNL-ANGL-0306, 6″ Angle Plate / Stop
- (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate
- Plus – (1) TR-KIT-01 Inspection Arsenal® “WORKS” Work Holding Kit
This smaller fixture system is perfect for smaller CMM inspection applications.
Description
5-Pc. CMM Fixture Plate System (12″ Rail) PLUS the ‘WORKS’ Work Holding Kit (158 pcs)
Loc-N-Load™ combinations of fixture rails, plates and clamps create affordable, repeatable, and durable fixtures that reduce setup time and process more parts per shift.
Includes (1) LNL-Dock-12, 12″ docking rail; (2) LNL-PLT-0606, 6×6″ Loc-N-Load plates; (1) LNL-ANGL-0306, 6″ Angle Plate / Stop; (1) LNL-QUAL-PLT, 6 x 4″ Indicator Ball Plate; plus TR-KIT-01 Inspection Arsenal® Work Holding Kit.

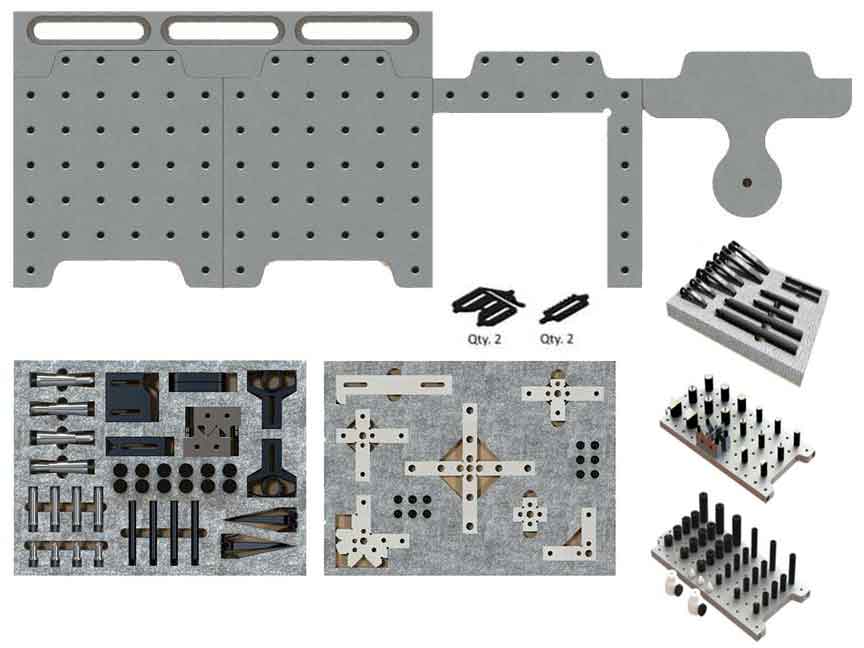

WORKS Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2) Trigger-Block™ clamps, (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea.) 1, 2, and 3” Silver-Bullet™ stand-offs, (7) Simple-Stop™ rails and stops; (2) Spring-Loc™ clamps; (2) Sliding Stop™ stops; (2) Hole Adjusters; (2) V-Blocks; (34) Stand-off & Rest Pad set; (18) Magnetic Riser Set; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.
For larger and gantry-style CMMs add more than one rail and a variety of fixture plates. All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. They can be purchased as needed and shipped same day!
