Inspection Arsenal, CMM Fixture System (12″ with Complete Clamp Kit), SYS05_DK12TR02

was $2,159.00 Special Price $2,051.05

Bundle includes:

  • (1) LNL-Dock-12, Docking rail 12″
  • (2) LNL-PLT-0606, Loc-N-Load plates, 6 x 6″
  • (1) LNL-ANGL-0306, Angle Plate / Stop 6″
  • (1) LNL-QUAL-PLT, Indicator Ball Plate 6 x 4″
  • Plus – (1) TR-KIT-02  Complete Kit Work Holding kit.
SKU
SYS05_DK12TR02
Test
(Size: 1.7 MB)

Description

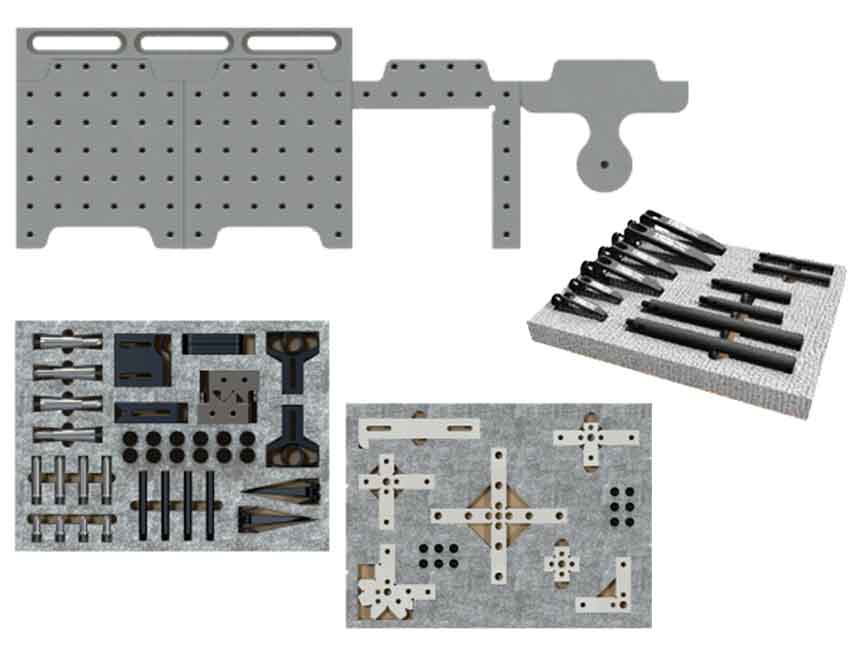

5-Pc. Loc-N-Load™ fixture system (12″ Rail) PLUS Complete Clamp Kit (82 pcs)

Use to create multiple fast-swap setups per CMM! All Loc-N-Load™ fixture plates, rails, and clamps are designed to be built like puzzle pieces in a magnetically interlocking style. The Complete Clamp Kit provides everything you need to inspect virtually any part. Add one Bundle per CMM to create redundancy in your Quality Department.  Bundle System and additional pieces can be purchased as needed and shipped same day!

Bundle includes: (1) LNL-Dock-12, 12″ docking rail, (2) LNL-PLT-0606, 6×6″ Loc-N-Load plates; (1) LNL-ANGL-0306, Angle Plate / Stop 6″; (1) LNL-QUAL-PLT, Indicator Ball Plate 6 x 4″, plus TR-KIT-02, Inspection Arsenal® Complete-Kit

Complete Kit includes: (4 ea.) Cross-Bow™ and D-Block clamps; (2 ea.) Trigger-Block™ clamps and V-Block stand-offs; (2) Trigger-Finger™ hold-downs with (4) 3” steel shafts, (4 ea. ) 1, 2, and 3” Silver-Bullet™ stand-offs, (2 ea.) -07 and -02 Simple-Stop™ rails and stops; (2 ea.) sturdy lever clamps 1.5″, 2.5″ and 3.5″ (shafts included) plus hex key, thumb and button-head screws.

 fixtures that reduce setup time and process more parts per shift.
