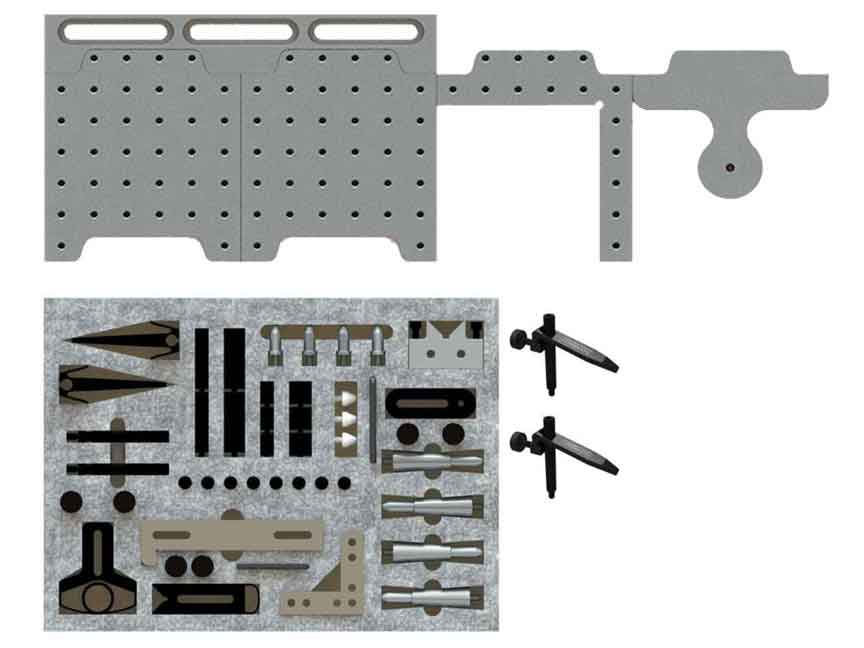

Inspection Arsenal, CMM Fixture System (12 inch Dock with Starter Clamp Kit), SYS05_DK12TR03
Bundle includes:
- (1) LNL-Dock-12, Docking Rail 12″
- (2) LNL-PLT-0606, Loc-N-Load plates 6 x 6″
- (1) LNL-ANGL-0306, Angle Plate / Stop 6″
- (1) LNL-QUAL-PLT, Indicator Ball Plate 6 x 4″
- (1) TR-KIT-03 Starter Work Holding Kit
This fixture system is perfect for smaller CMM inspection applications.
Description
5-Pc. Loc-N-Load™ fixture system (12″ Rail) PLUS TR-Kit-03 Starter Kit (62 pcs)
Loc-N-Load™ combinations of fixture rails, plates and clamps create affordable, repeatable, and durable fixtures that reduce setup time and process more parts per shift. Plates interlock magnetically to remain firmly secured to one another.
Easily installs on CMMs and most laser equipment- use in applications from inspection to laser marking, in addition to other marking processes – even silk screen. Interchangeable with our Open-Sight™ Vision/Optical Fixture Plate system.
Bundle includes: (1) LNL-Dock-12, Docking Rail 12″; (2) LNL-PLT-0606, Loc-N-Load plates 6 x 6″; (1) LNL-ANGL-0306, Angle Plate / Stop 6″; (1) LNL-QUAL-PLT, Indicator Ball Plate 6 x 4″; PLUS TR-KIT-03 Starter Work Holding kit containing non-marring hold downs, v-blocks, stops, and stand-offs.
Starter Kit includes:
- (2) Cross-Bow™
- (2) D-Blocks™
- (2) Trigger-Finger™
- (2) Lever Clamps 2.5″ (shafts included)
- (2) V-Block 1 set
- (8) Silver-Bullet™, 4 each – 1″ and 3″
- (2) Steel shaft / stand-off; stackable
- (2) Hole Adjusters
- (4) Simple-Stops™ – 2 each #01, #07
- (13) Stand-offs, assorted sizes
- (21) Hex Keys, plus assorted screws
