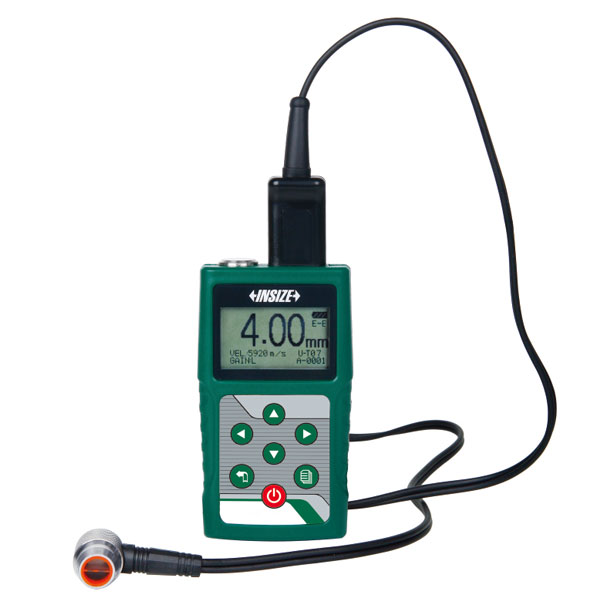

Insize, Ultrasonic Thickness Gage (Through Coating), ISU-300D

ULTRASONIC THICKNESS GAGE (THROUGH COATING)

• Measuring range: E-E mode: coating thickness 0~.04", substrate thickness .16~.98"; T-E mode substrate thickness .06~7.87".
• Res: .001" (range<10"), .01" (range≥10"). Repeatability: .001" (range<4"), .004" (range 4-10"), .01" (range≥10").
• Two measuring modes, Echo-Echo (E-E) and Transmit-Echo (T-E):E-E is applicable for non-metallic coating
• T-E is to measure the thickness of material without coating, such as metal, plastic, glass nylon resin, ceramics, rubber, and ice.
• Low and high limits with judgment.
• Average calculation of maximum 9 readings.
• Memory of maximum 500 readings.
