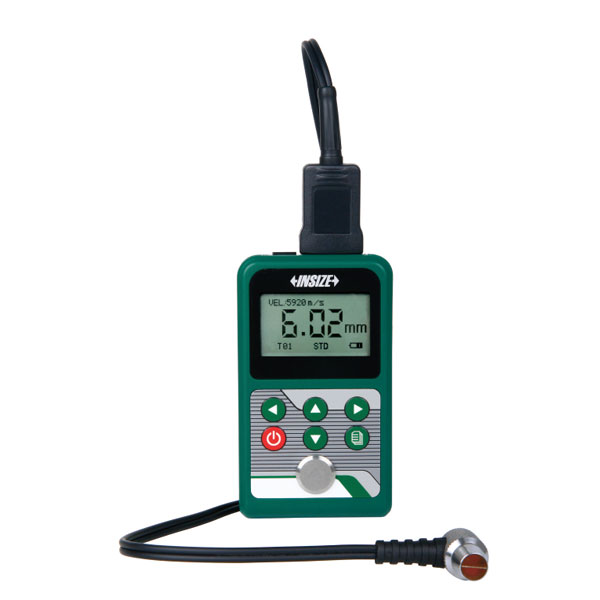

Insize, Ultrasonic Thickness Gage, .03 ~ 11.81", ISU-100D

ULTRASONIC THICKNESS GAGE, .03 ~ 11.81"

• Resolution: .001" (range<10"), .01" (range≥10").
• Measure the thickness from one side of object, suitable for pipe, tank, etc.
• Applicable material: metal, plastic, glass, nylon, resin, ceramic, rubber, ice
• Accuracy: ±.002" (range<.4"), ±(.002+H/1000)" (range.4~4"), ±H/333" (range≥4")
• H is the thickness to be measured in inch
• Transducer frequency: 5MHz.
• Transducer diameter .43" DIA
• Minimum size of pipe for measurement: .79×.05" (diameter × wall thickness). Applicable temperature: <140°F. Velocity: .039-.394inch/us.
