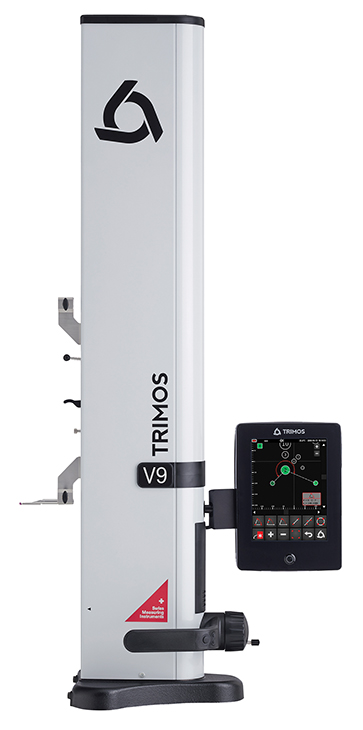

Fowler,-Trimos V9 28”/710mm Electronic Height Gage, 54-199-970-0
The NEW Fowler-Trimos V vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run. Along with higher accuracy and repeatability, the V7 and V9 models also offer 2D hole pattern measurement, programming and statistics.
.

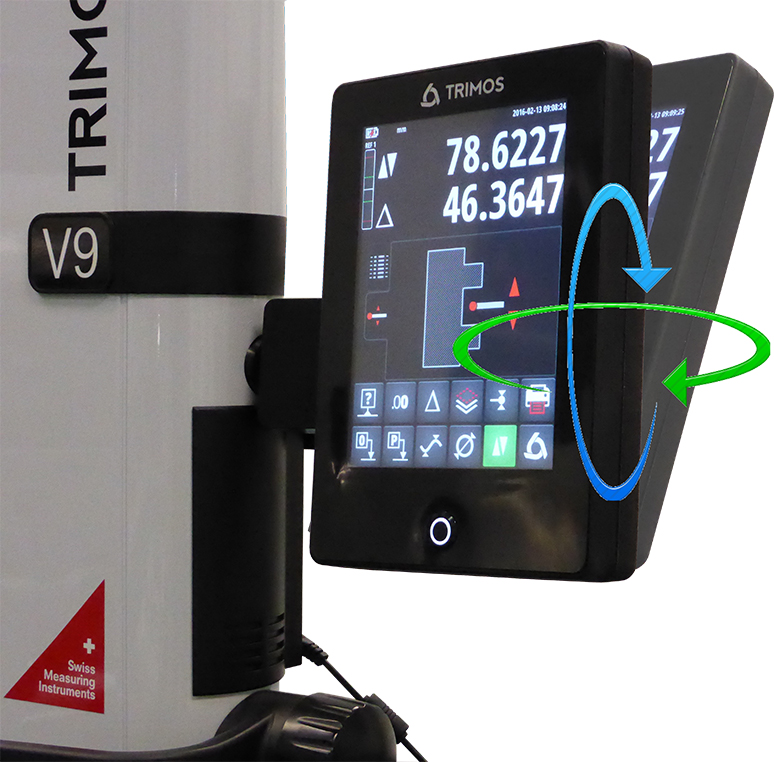

The touch screen display on the V7 and V9 models offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angle measurements or statistical analysis of results..
.
Features:.
• Measuring ranges 400mm, 700mm and 1100mm.
• Extremely easy to use.
• High contrast display allows easy reading at any time with user friendly functions.
• Electronically adjustable measuring force 0.75/1.5 (N).
• Vast range of accessories.
• All adjustments possible without tools.
• Cast iron base for optimal stability.
• RS232 and USB interfaces.
• Air cushion (on all models except V3).
• Dual probe holders (on all models except V3).
• Carriage displacement: Manual (V5 - V9 includes selectable manual or motorized carriage displacement).
• Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta.
• Accessory measuring probes up to 340mm in length available and provide excellent repeatability .
.
All V Models Include: .
• Charging unit.
• Measuring insert with ruby ball Ø4mm.
• Probe holder elbow Ø 8mm.
• Setting gage.
• User's manual.
• Test certificate .
.
Technical Data.
Measuring Range: 28″/710mm.
Range with probe inverted: 40″/1028mm.
Max. Permissible Errors (µm): 1.2 + L(mm) / 1000.
Frontal Squareness Deviation: 0.00032″/0.008mm.
Resolution: 0.00001″/0.0001mm.
Repeatability (2s): 0.00002″/0.0005mm (Ø 0.00004″/0.001mm).
Battery Life (Hrs): 12.
Squareness probe: YES (accessory available).
Air Cushion: YES.
.
The touch screen display on the V7 and V9 models offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angle measurements or statistical analysis of results..
.
Features:.
• Measuring ranges 400mm, 700mm and 1100mm.
• Extremely easy to use.
• High contrast display allows easy reading at any time with user friendly functions.
• Electronically adjustable measuring force 0.75/1.5 (N).
• Vast range of accessories.
• All adjustments possible without tools.
• Cast iron base for optimal stability.
• RS232 and USB interfaces.
• Air cushion (on all models except V3).
• Dual probe holders (on all models except V3).
• Carriage displacement: Manual (V5 - V9 includes selectable manual or motorized carriage displacement).
• Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta.
• Accessory measuring probes up to 340mm in length available and provide excellent repeatability .
.
All V Models Include: .
• Charging unit.
• Measuring insert with ruby ball Ø4mm.
• Probe holder elbow Ø 8mm.
• Setting gage.
• User's manual.
• Test certificate .
.
Technical Data.
Measuring Range: 28″/710mm.
Range with probe inverted: 40″/1028mm.
Max. Permissible Errors (µm): 1.2 + L(mm) / 1000.
Frontal Squareness Deviation: 0.00032″/0.008mm.
Resolution: 0.00001″/0.0001mm.
Repeatability (2s): 0.00002″/0.0005mm (Ø 0.00004″/0.001mm).
Battery Life (Hrs): 12.
Squareness probe: YES (accessory available).
Air Cushion: YES.
