Fowler, Trimos THV Package Discount 1, THV Horizontal Package 1

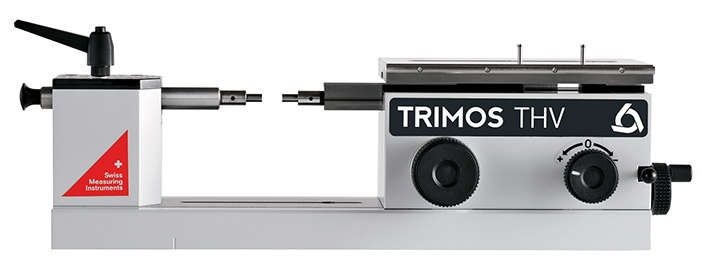

The Fowler-Trimos innovative horizontal instrument that fulfills current quality requirements for many applications.
Multiple accessories ensure versatile applications for checking all types of gages such as plug gages, ring gages, thread plug gages, lever dial indicators, etc. as well as precision manufactured parts. Measuring range 2" and application range 4". High accuracy is guaranteed by perfect instrument construction and the Heidenhain measuring system. The simplicity of the instrument and its ease of use allows precise and quick performance of all measurements. Adjustable Measuring Force is suitable for measuring thread members utilizing the 3 wire method.
Specifications: Overall Application Range Using standard probe
External measurement 0 - 4"/0 - 100mm
Internal measurement .4 - 4"/10 - 100mm
Scale Range(travel) Absolute display over 2"/50mm
Max Measuring Band Error 0.000016"/.4μm reference
Temperature 20°C Resolution on Heidenhain ND 287 0.00001", 0.000001"
Repeatability 0.000005" ± 2s (.1μm)
Adjustable Measuring Force 0 to 12N (0 - 40 oz. )
Includes: 54-198-558-0: Fowler - Trimos THV With Floating Table 54-198-115-0: Measuring Table For Plug Gages 54-198-110-0: Display Unit Quadra Check
Multiple accessories ensure versatile applications for checking all types of gages such as plug gages, ring gages, thread plug gages, lever dial indicators, etc. as well as precision manufactured parts. Measuring range 2" and application range 4". High accuracy is guaranteed by perfect instrument construction and the Heidenhain measuring system. The simplicity of the instrument and its ease of use allows precise and quick performance of all measurements. Adjustable Measuring Force is suitable for measuring thread members utilizing the 3 wire method.
Specifications: Overall Application Range Using standard probe
External measurement 0 - 4"/0 - 100mm
Internal measurement .4 - 4"/10 - 100mm
Scale Range(travel) Absolute display over 2"/50mm
Max Measuring Band Error 0.000016"/.4μm reference
Temperature 20°C Resolution on Heidenhain ND 287 0.00001", 0.000001"
Repeatability 0.000005" ± 2s (.1μm)
Adjustable Measuring Force 0 to 12N (0 - 40 oz. )
Includes: 54-198-558-0: Fowler - Trimos THV With Floating Table 54-198-115-0: Measuring Table For Plug Gages 54-198-110-0: Display Unit Quadra Check
