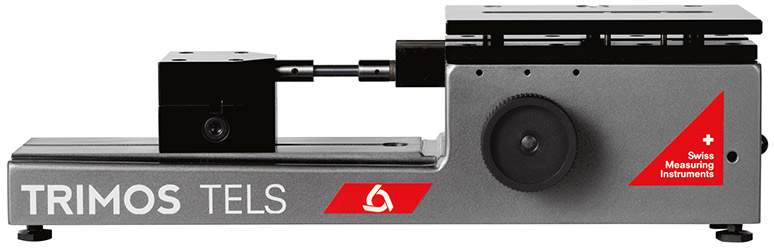

Fowler, Trimos Mini-Horizontal System, 53-190-012

The Fowler/Trimos Mini-Horizontal is a complete system for accurately measuring small internal and external sizes with a single gage. Sylvac's electronic measuring system is recommended for use with the Mini-Horizontal because of its proven operational reliability. The display unit is the positive answer to a variety of measuring problems. In order to satisfy the demand of quality in production, a direct two-way RS232C data output allows connection to a printer or computer. Mini-Horizontal Construction • Monoblock construction with probe guide track. • Adjustable end-stop with anvil location. • Control knob for the displacement of the guide track of the monoblock (probe release). • Adjustable measuring pressure device. • Location for different measuring features, i.e. electronic probes or indicators, 8mm diameter. • Interchangeable measuring anvils for external measurements (53-190-019 anvils—6.5mm diameter with tungsten carbide tipped measuring surface are supplied as standard). • Interchangeable measuring inserts for internal measurements (53-190-020 Inserts—4.5mm diameter, rounded, are supplied as standard). • Vertically adjustable table for internal measurement, hard chromed and ground surface, supplied as standard.
