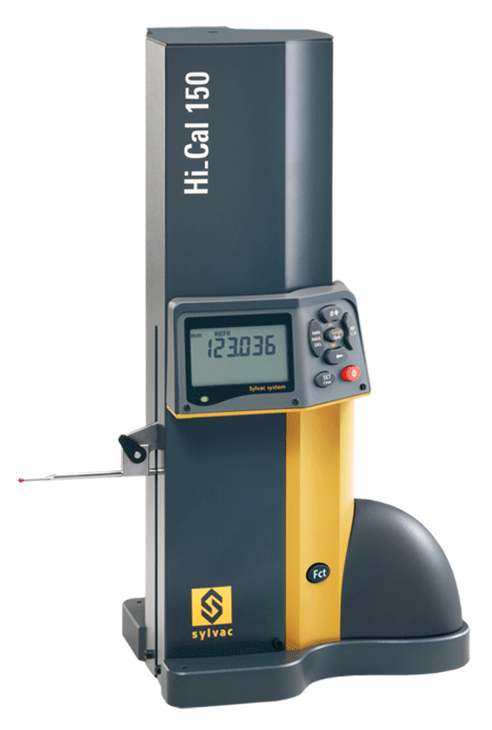

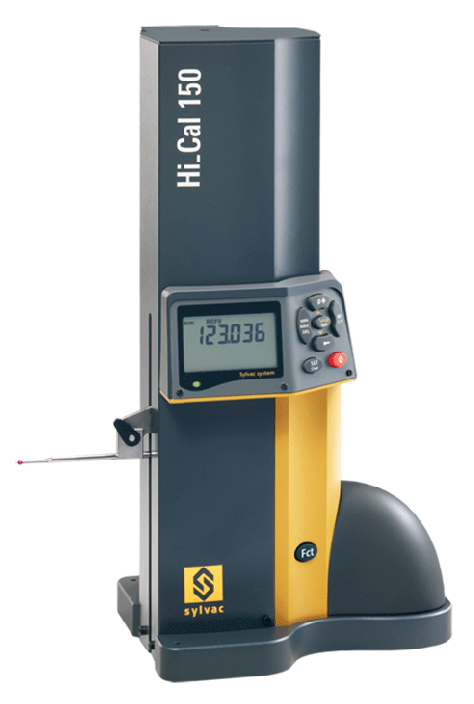

Fowler, Sylvac 6”/150mm Hi_CAL Electronic Height Gage, 54-931-150-0

$4,898.40
SKU
549311500
• Measuring ranges: 6"/150mm, 12"/300mm and 17.5"/450mm
• Error Max µm: 2.5 + L / 175mm
• Extra low measuring force, from 0.2 N
• Measurement of internal and external diameters, centerlines, heights, widths, depths, surfaces
• MIN, MAX, TIR capability
• Excellent repeatability thanks to the motorized carriage.
• Intuitive functions/minimizes key strokes
• Customizable with free software
• Great mobility
• High reliability
• Data output USB and RS232
• Battery life: 40 hours rechargeable during operation
• Touch sensitive probe speed for easy operation
• Base with small footprint
• 4mm probe shank



Instrument Includes Protective Cover, Charging Set,
Ruby Ball Probe Ø3mm, Setting gage and Calibration Certificate!


Range: 6″/150mm
Application Range: 6.1″/0-155mm
Maximum Error (µm): 2.5 + L/175
Repeatability: 2µm
Resolution: 0.00005″/0.001mm
Velocity (mm/sec.): 50/100
Measuring Force: 0.2 - 0.3 Newtons
Self-Contained Use: Approximately 40 hours
Overall Height: 14.92″/379mm
Weight: 8.6 lb/3.9 kg
S_Connect: USB/mini USB/RS-232
Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speedRange: 6″/150mm
Application Range: 6.1″/0-155mm
Maximum Error (µm): 2.5 + L/175
Repeatability: 2µm
Resolution: 0.00005″/0.001mm
Velocity (mm/sec.): 50/100
Measuring Force: 0.2 - 0.3 Newtons
Self-Contained Use: Approximately 40 hours
Overall Height: 14.92″/379mm
Weight: 8.6 lb/3.9 kg
S_Connect: USB/mini USB/RS-232
Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed
