Fowler, Sylvac 17.5”/450mm Hi_CAL Electronic Height Gage With ISO/A2LA Certificate, 54-931-450-C

In stock
54931450C BOM
Fowler-Sylvac Hi_Cal with ISO/A2LA Certificate

• Measuring ranges: 6"/150mm, 12"/300mm and 17.5"/450mm • Error Max µm: 2.5 + L / 175mm

• Extra low measuring force, from 0.2 N
• Measurement of internal and external diameters, centerlines, heights, widths, depths, surfaces.
• MIN, MAX, TIR capability
• Excellent repeatability thanks to the motorized carriage.
• Intuitive functions/minimizes key strokes
• Customizable with free software
• Great mobility
• High reliability
• Data output USB and RS232
• Battery life: 40 hours rechargeable during operation.
• Touch sensitive probe speed for easy operation.
• Base with small footprint.
• 4mm probe shank
Instrument Includes Protective Cover, Charging Set, Ruby Ball Probe Ø3mm, Setting gage and Calibration Certificate!

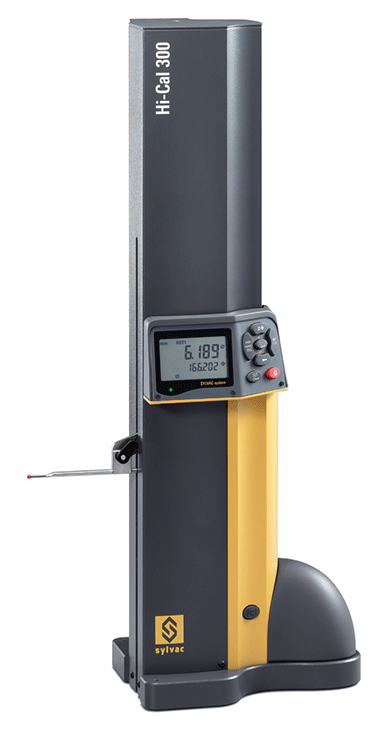

*Image shown for representational purposes only

Range: 17.5″/450mm
Application Range: 18.5″/0-470mm
Maximum Error (µm): 2.5 + L/175
Repeatability: 2µm
Resolution: 0.00005″/0.001mm
Velocity (mm/sec.): 50/100
Measuring Force: 0.2 - 0.3 Newtons
Self-Contained Use: Approximately 40 hours
Overall Height: 26.7″/679mm
Weight: 15 lb/6.8 kg
S_Connect: USB/mini USB/RS-232
Programmable by PC
Zero setting
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed
